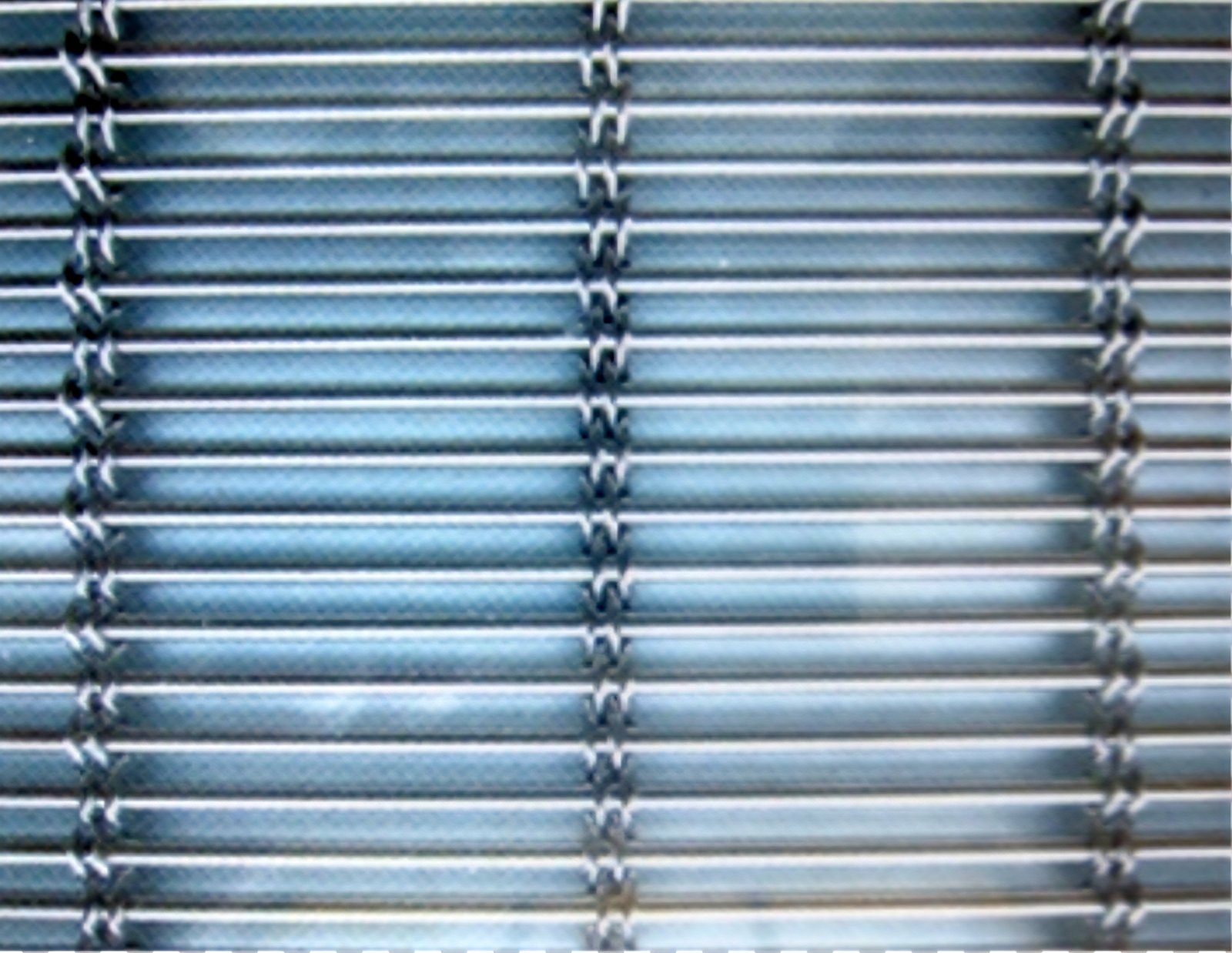

UW-436
Material : Stainless Steel 304/316/316L
Cable diameter : 1mm x 4
Cable pitch : 36 mm
Rod diameter : 2 mm
Rod pitch : 4 mm
Weight : 7 kg/m²

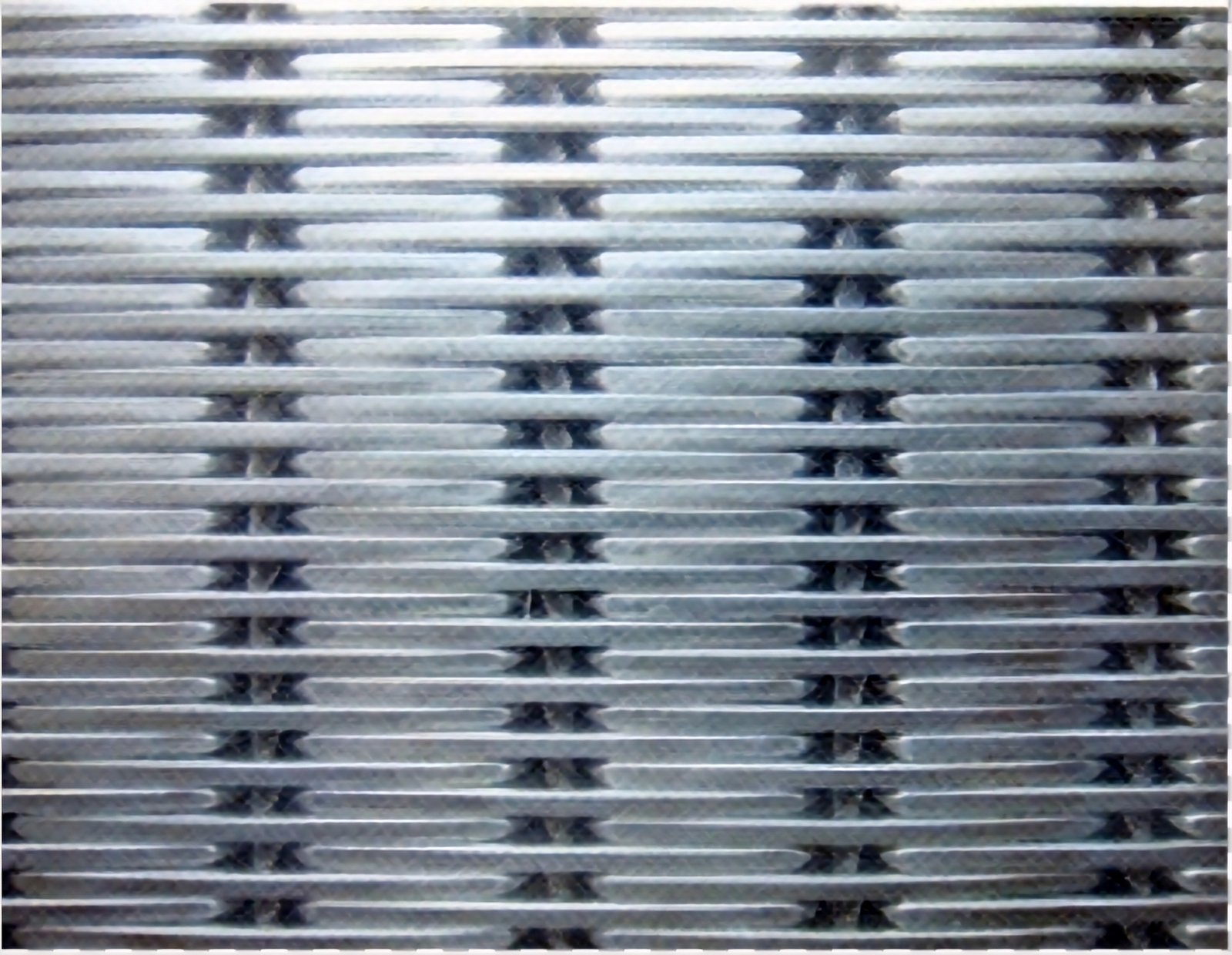

UW-1530
Material : Stainless Steel 304/316/316L
Cable diameter : 2mm x 1
Cable pitch : 17.5 mm
Rod diameter : 1.5 mm
Rod pitch : 1.5 mm
Weight : 11 kg/m²

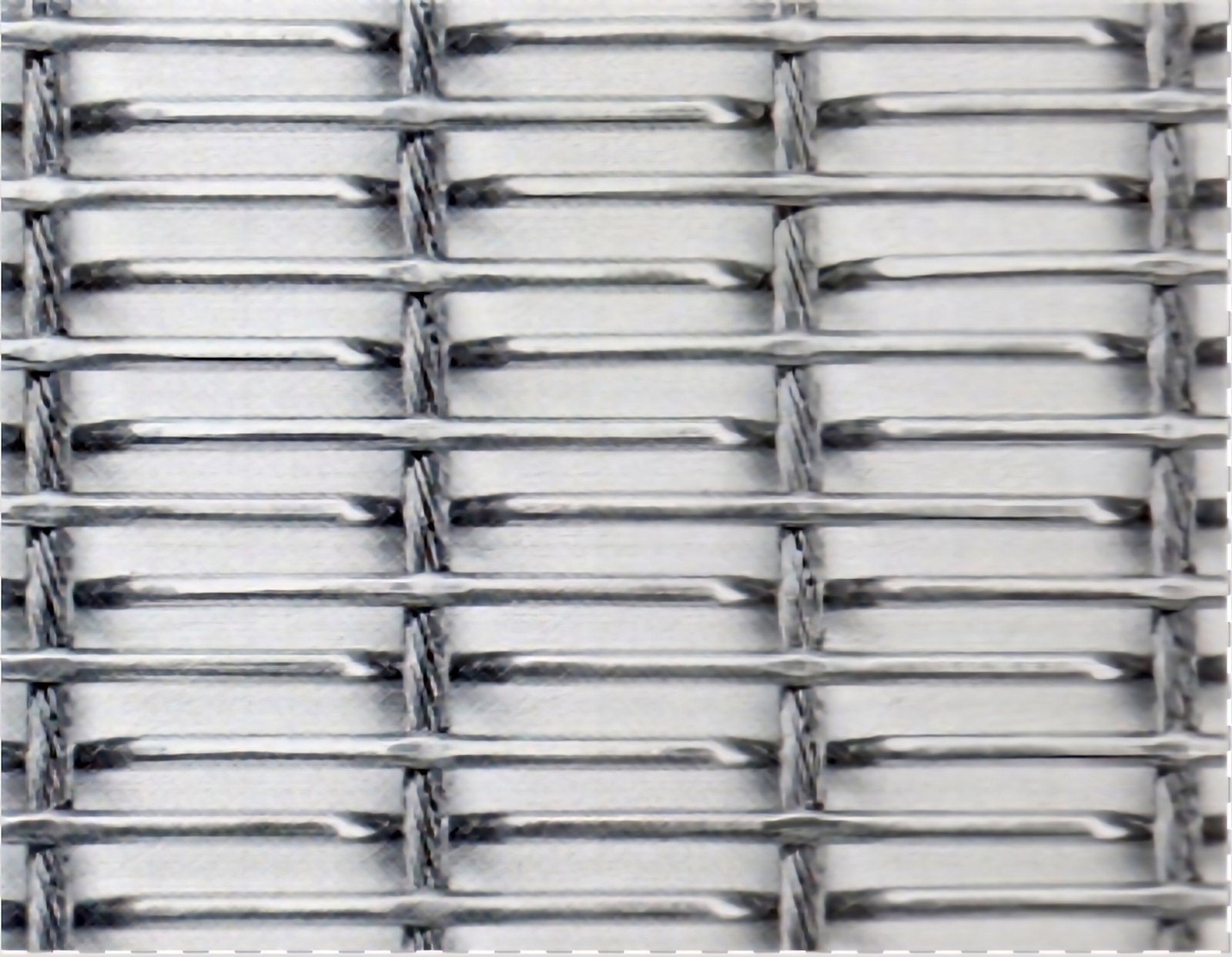

UW-1535
Material : Stainless Steel 304/316/316L
Cable diameter : 2mm x 1
Cable pitch : 17.5 mm
Rod diameter : 1.5 mm
Rod pitch : 3.5 mm
Weight : 5.5 kg/m²

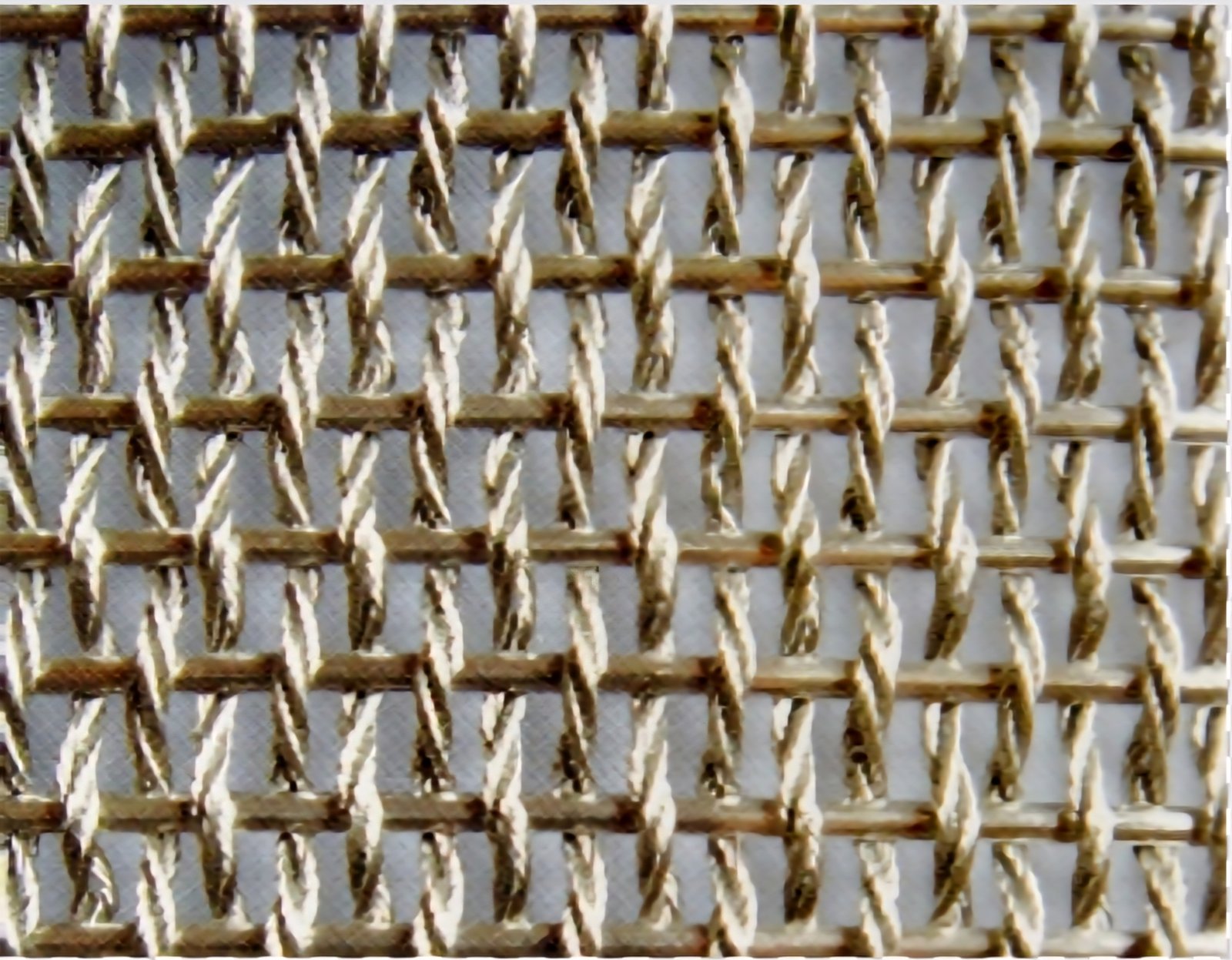

UW-1705
Material : Stainless Steel 304/316/316L
Cable diameter : 1.2mm x 1
Cable pitch : 5 mm
Rod diameter : 1.2 mm
Rod pitch : 5 mm
Weight : 3.66 kg/m²

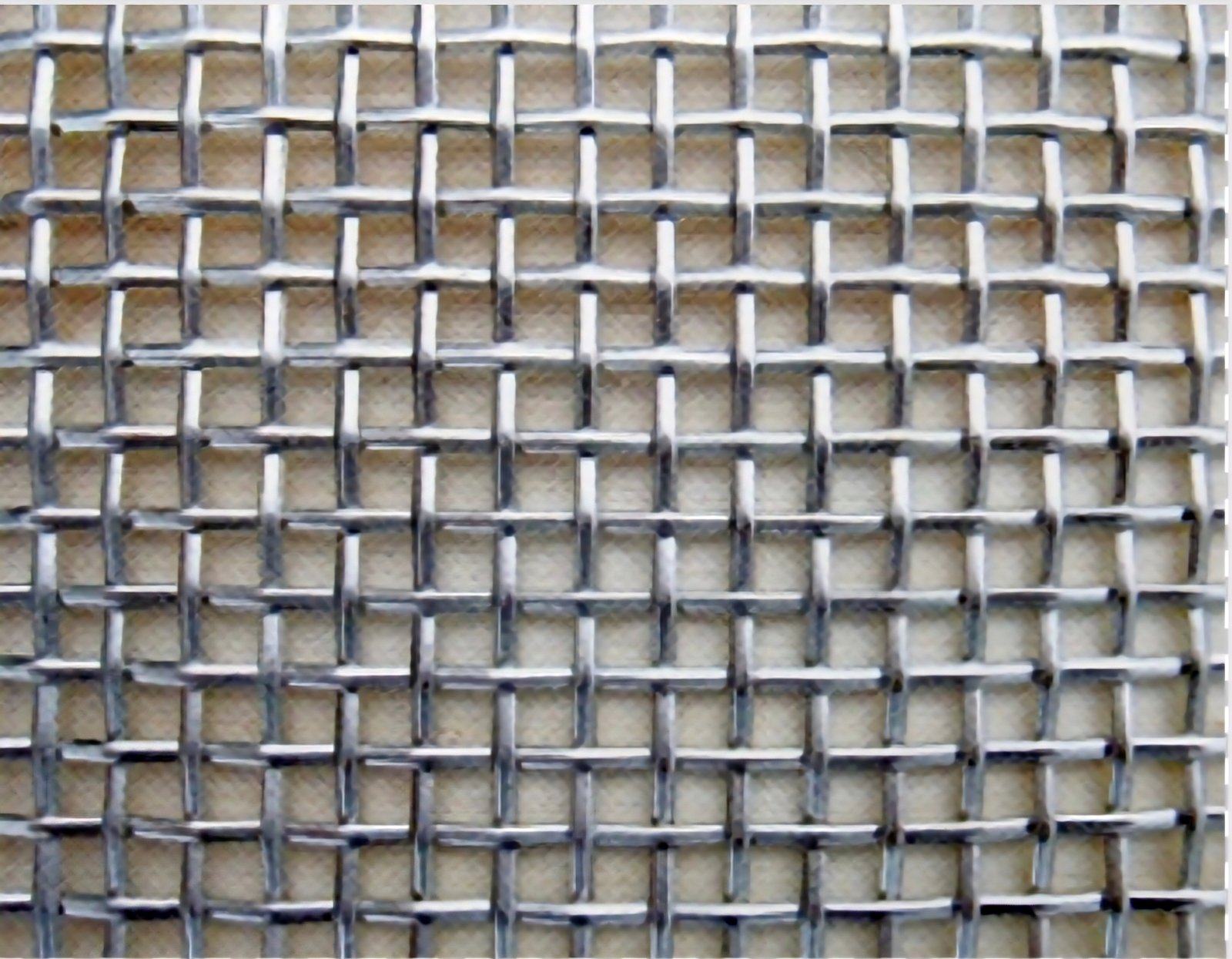

UW-1706
Material : Stainless Steel 304/316/316L
Cable diameter : 1.6mm x 1
Cable pitch : 3.2 mm
Rod diameter : 1.2 mm
Rod pitch : 6 mm
Weight : 5 kg/m²

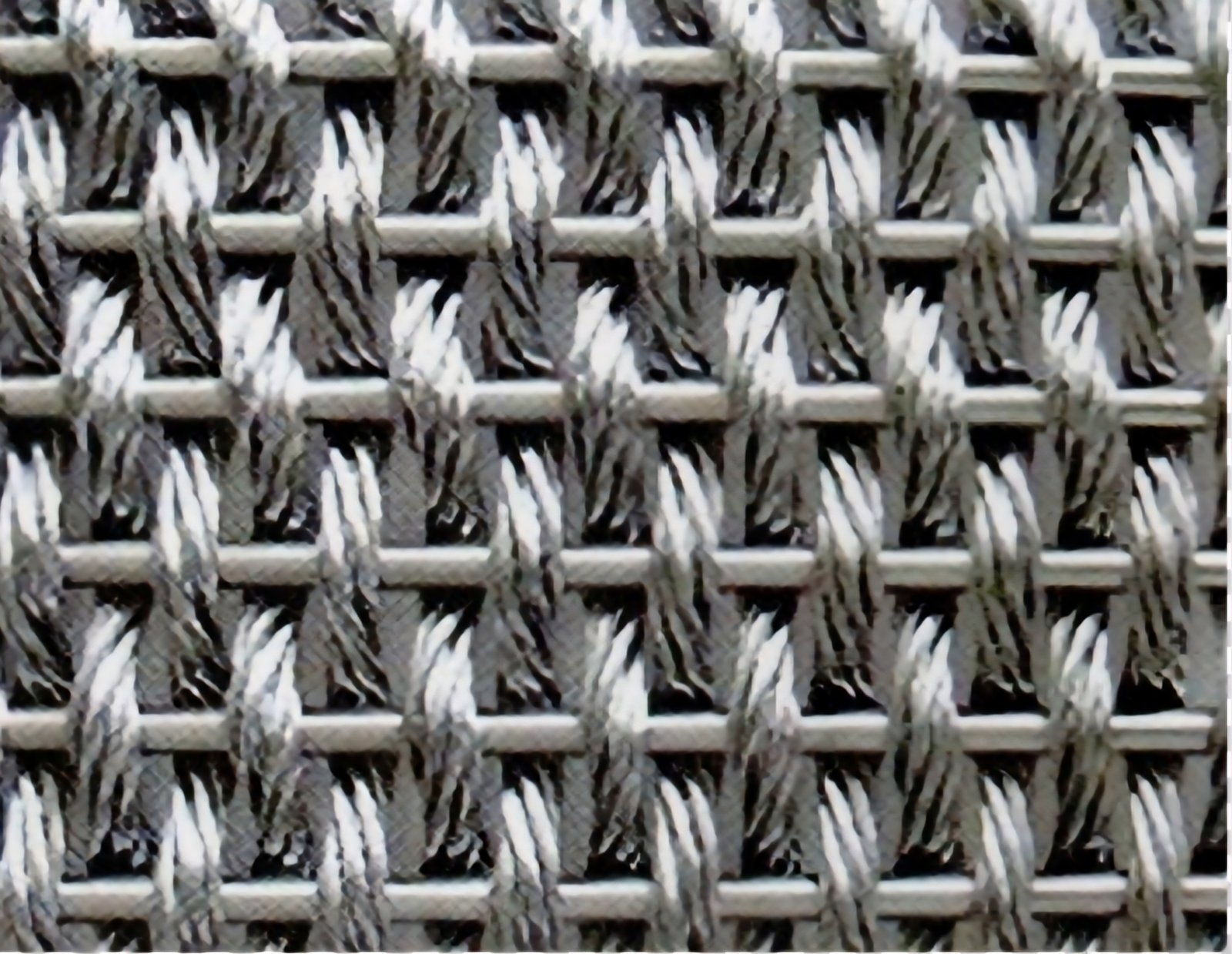

UW-1720
Material : Stainless Steel 304/316/316L
Cable diameter : 2mm x 1
Cable pitch : 3.1 mm
Rod diameter : 5 mm
Rod pitch : 5.2 mm
Weight : 10.2 kg/m²

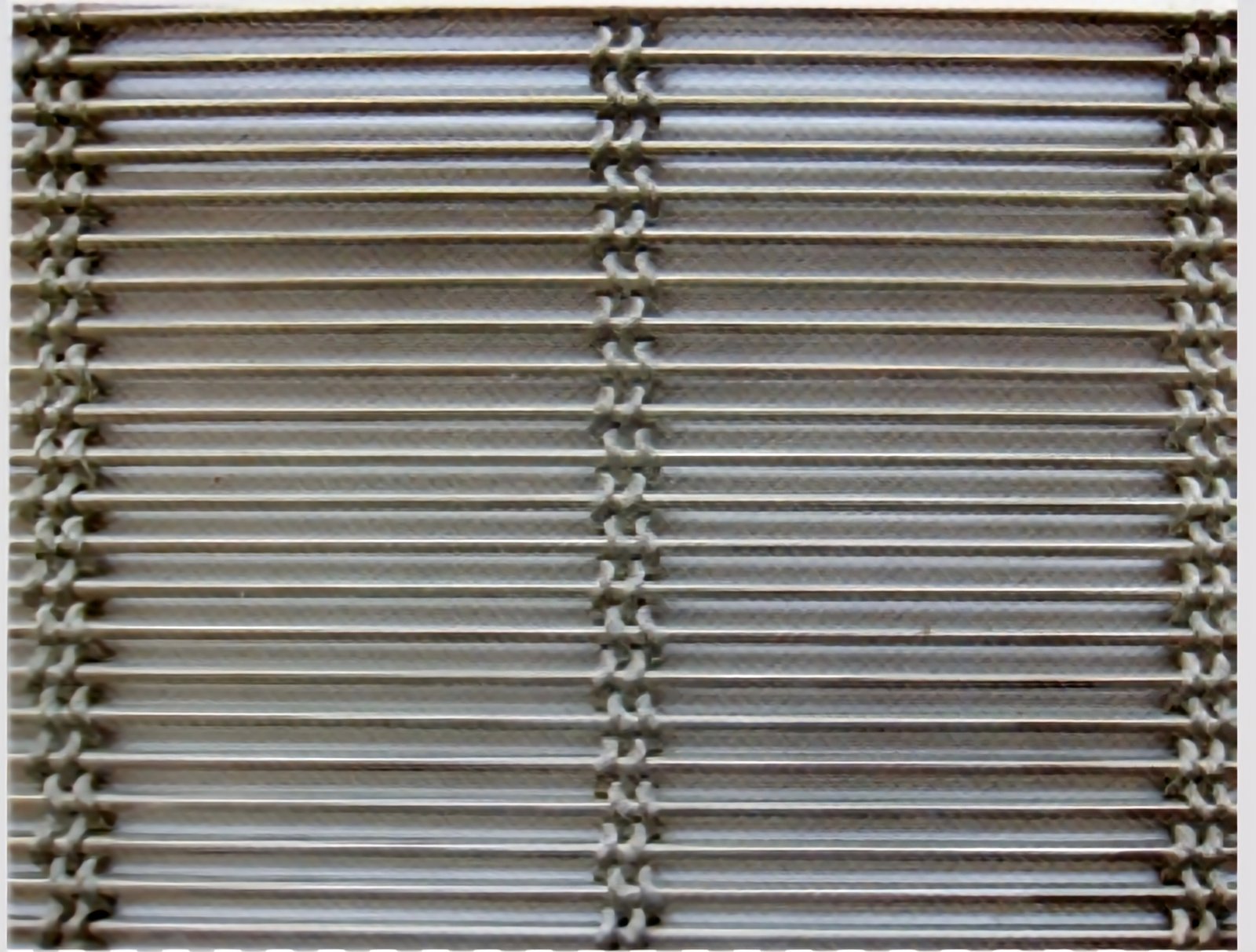

UW-405
Material : Stainless Steel 304/316/316L
Cable diameter : 2mm x 4
Cable pitch : 50 mm
Rod diameter : 3 mm
Rod pitch : 6 mm
Weight : 11.5 kg/m²

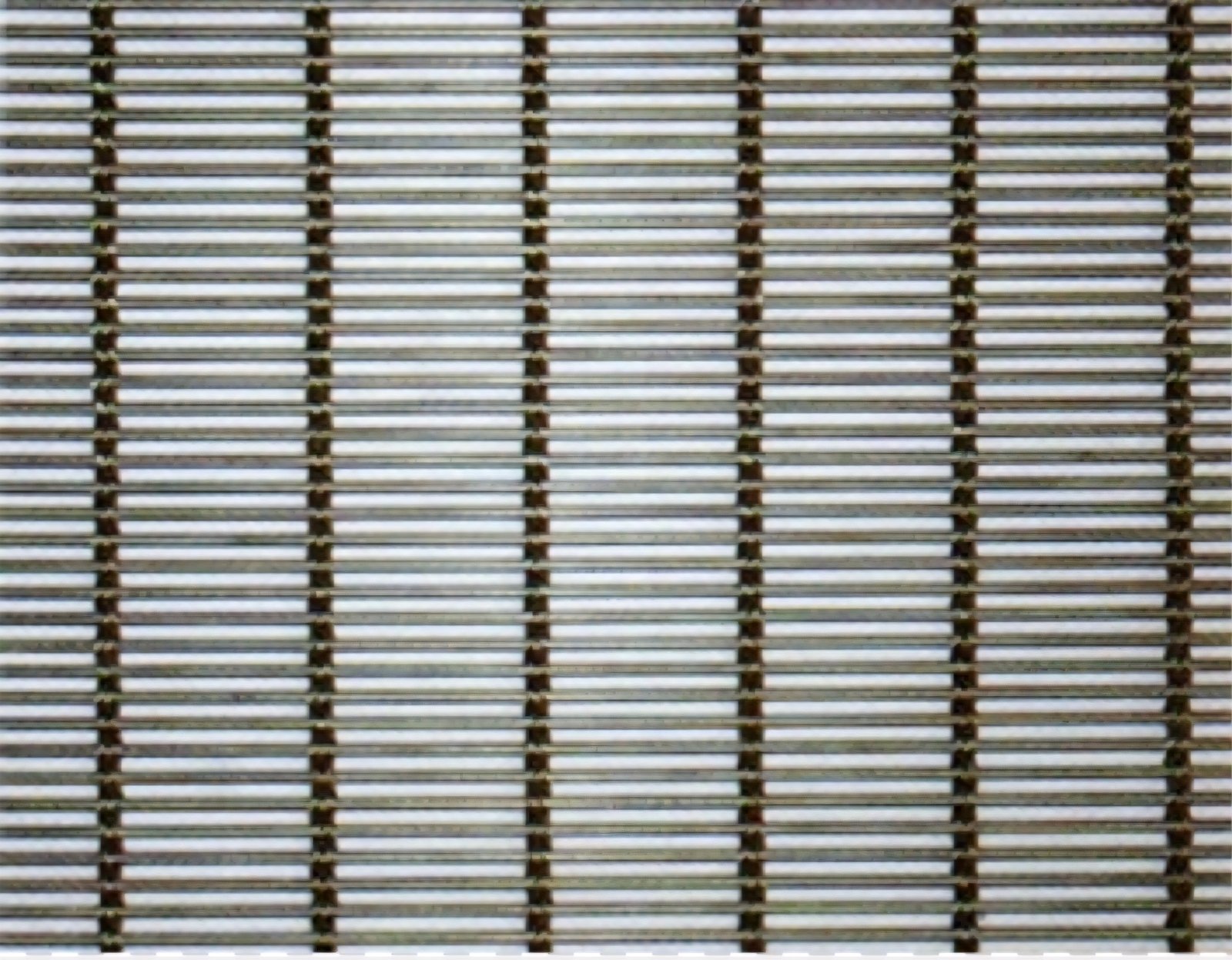

UW-426
Material : Stainless Steel 304/316/316L
Cable diameter : 0.75mm x 4
Cable pitch : 26.4 mm
Rod diameter : 1.5 mm
Rod pitch : 3 mm
Weight : 5.3 kg/m²

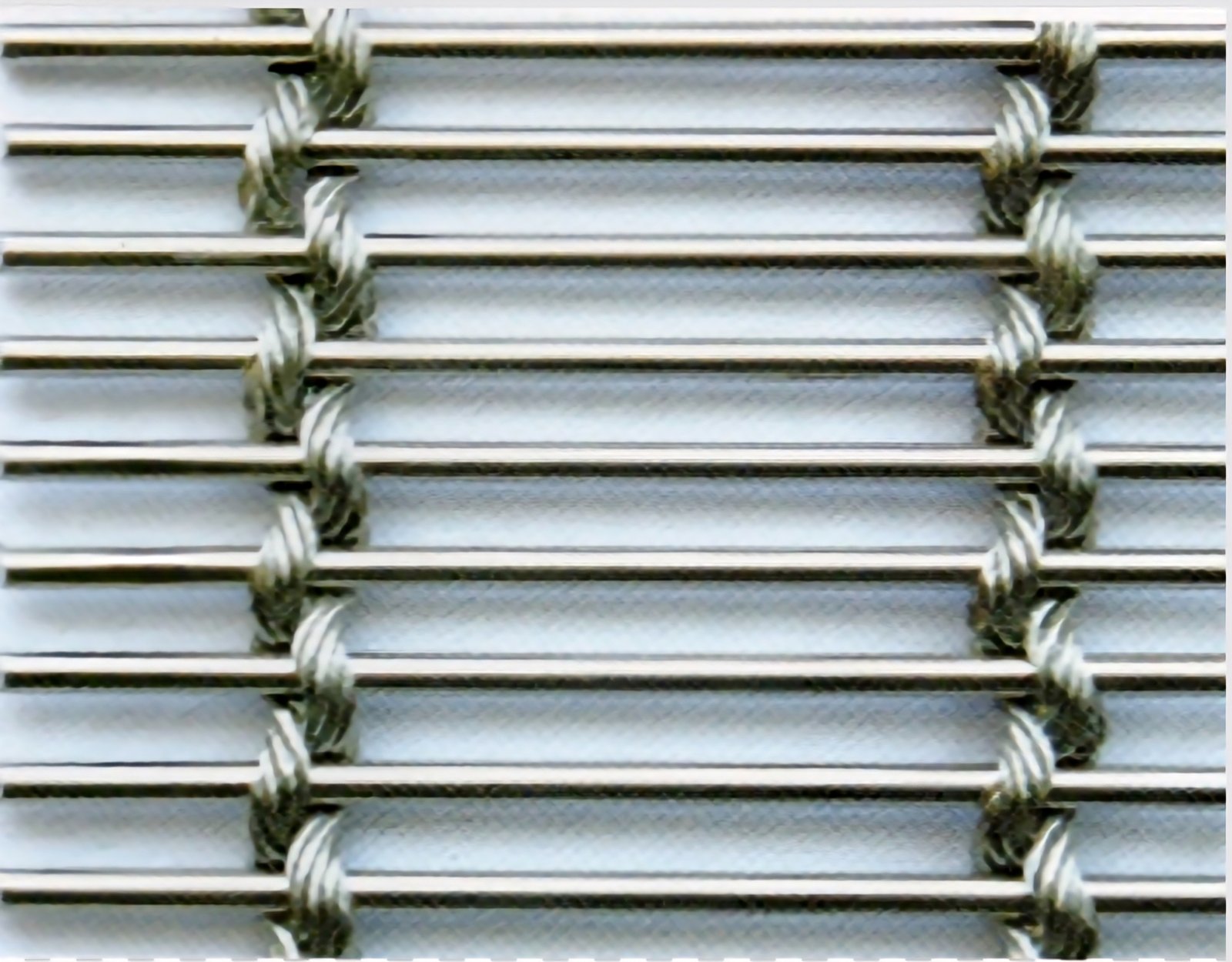

UW-3240
Material : Stainless Steel 304/316/316L
Cable diameter : 2.75mm x 2
Cable pitch : 40 mm
Rod diameter : 4 mm
Rod pitch : 14.5 mm
Weight : 9.41 kg/m²

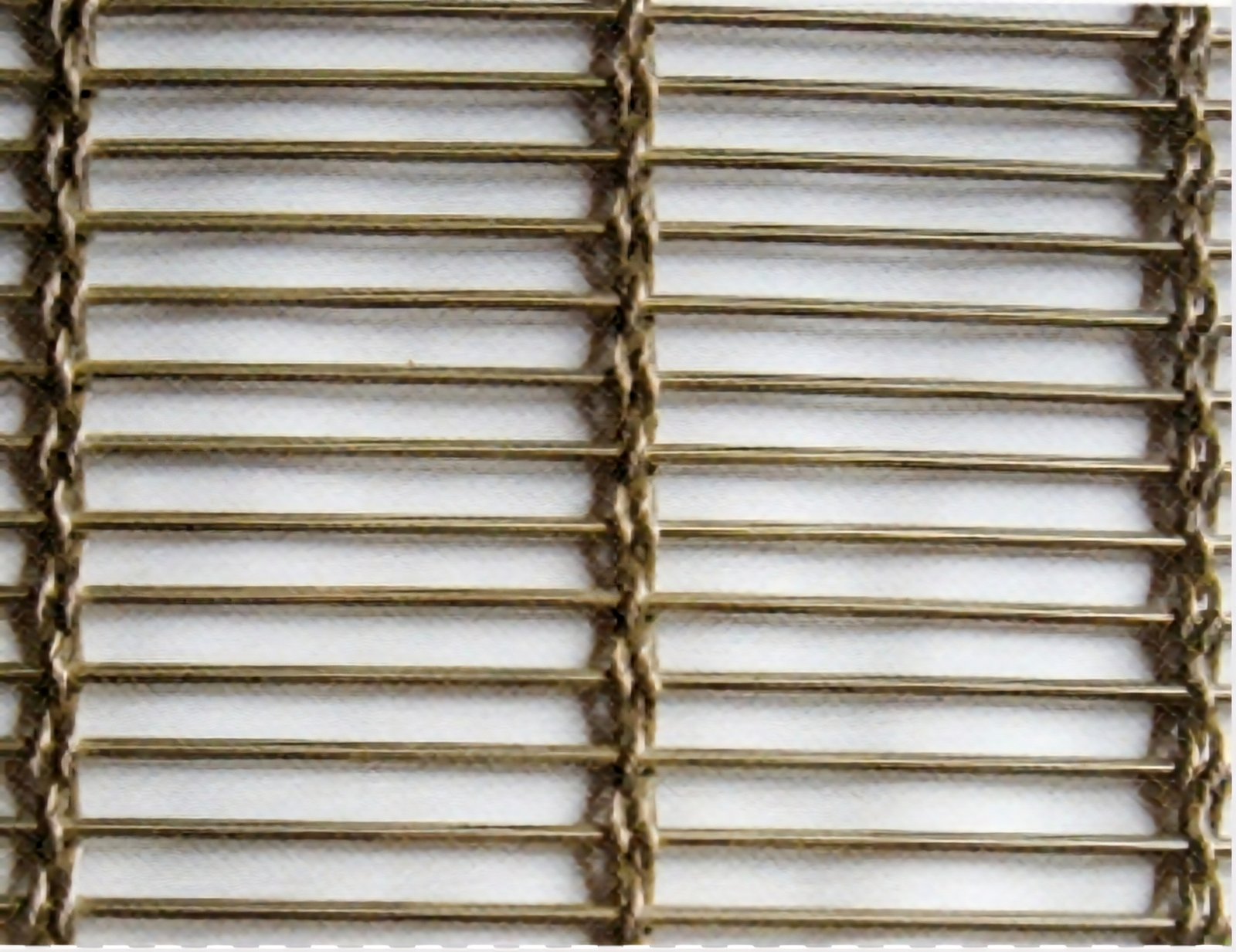

UW-3810
Material : Stainless Steel 304/316/316L
Cable diameter : 2mm x 3
Cable pitch : 80 mm
Rod diameter : 3 mm
Rod pitch : 10 mm
Weight : 6.6 kg/m²

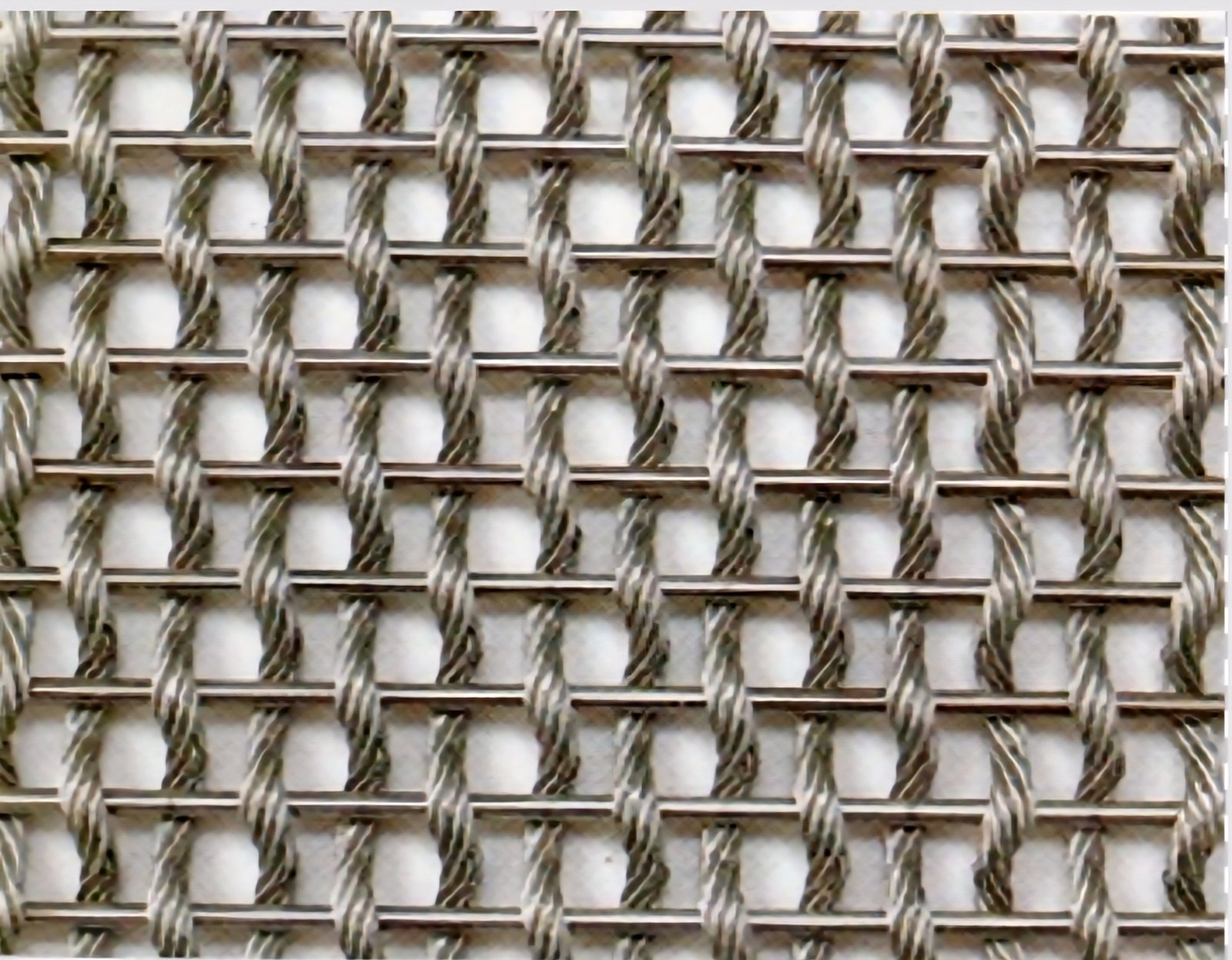

UW-4252
Material : Stainless Steel 304/316/316L
Cable diameter : 2.5mm x 1
Cable pitch : 5 mm
Rod diameter : 2 mm
Rod pitch : 6 mm
Weight : 12.2 kg/m²

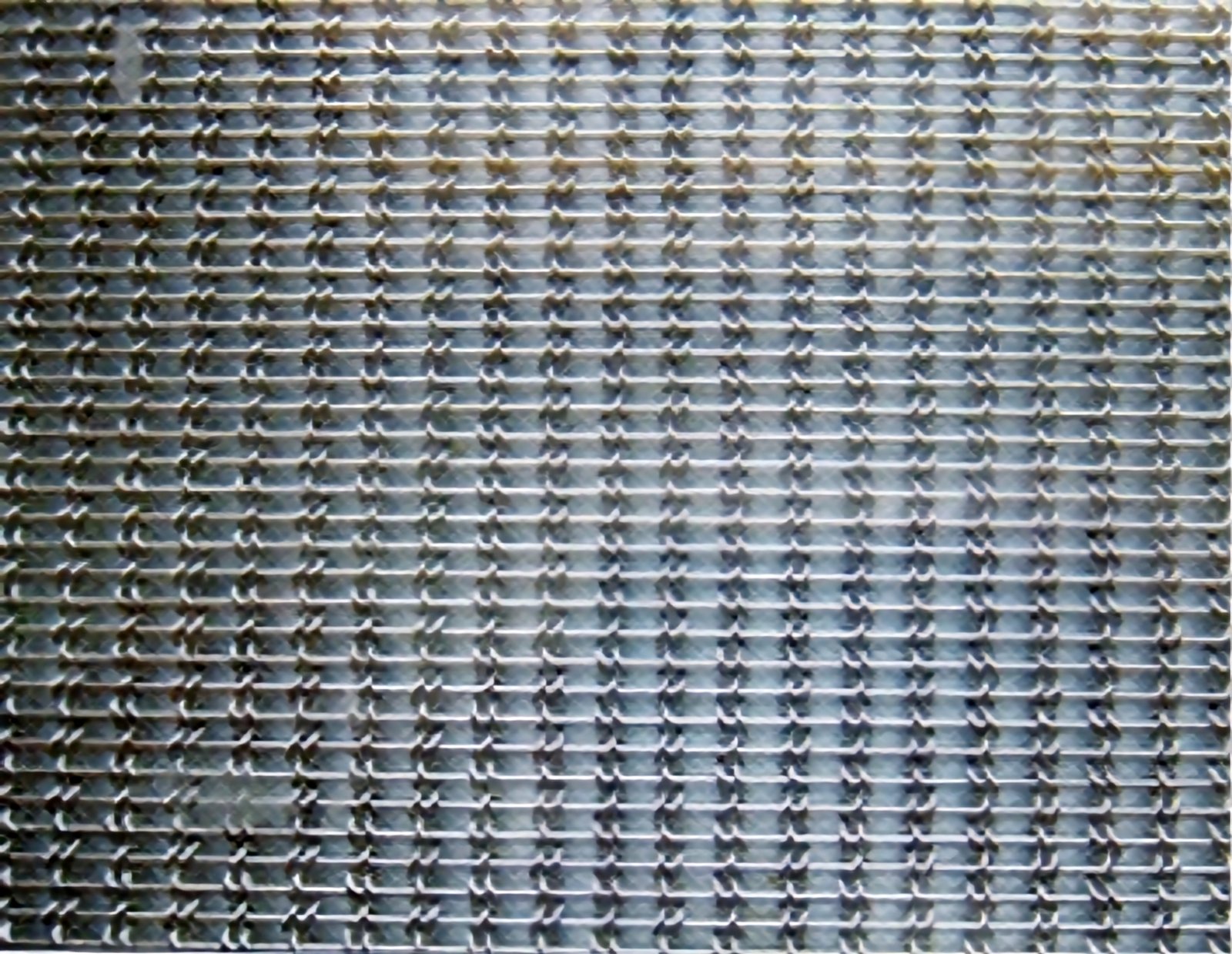

UW-4305
Material : Stainless Steel 304/316/316L
Cable diameter : 0.45mm x 3
Cable pitch : 3.5 mm
Rod diameter : 0.5 mm
Rod pitch : 1.6 mm
Weight : 1.85 kg/m²
UW-4305T
Material : Stainless Steel 304/316/316L
Cable diameter : 0.45mm x 3
Cable pitch : 3.5 mm
Rod diameter : 0.5 mm
Rod pitch : 1.6 mm
Weight : 2.1 kg/m²

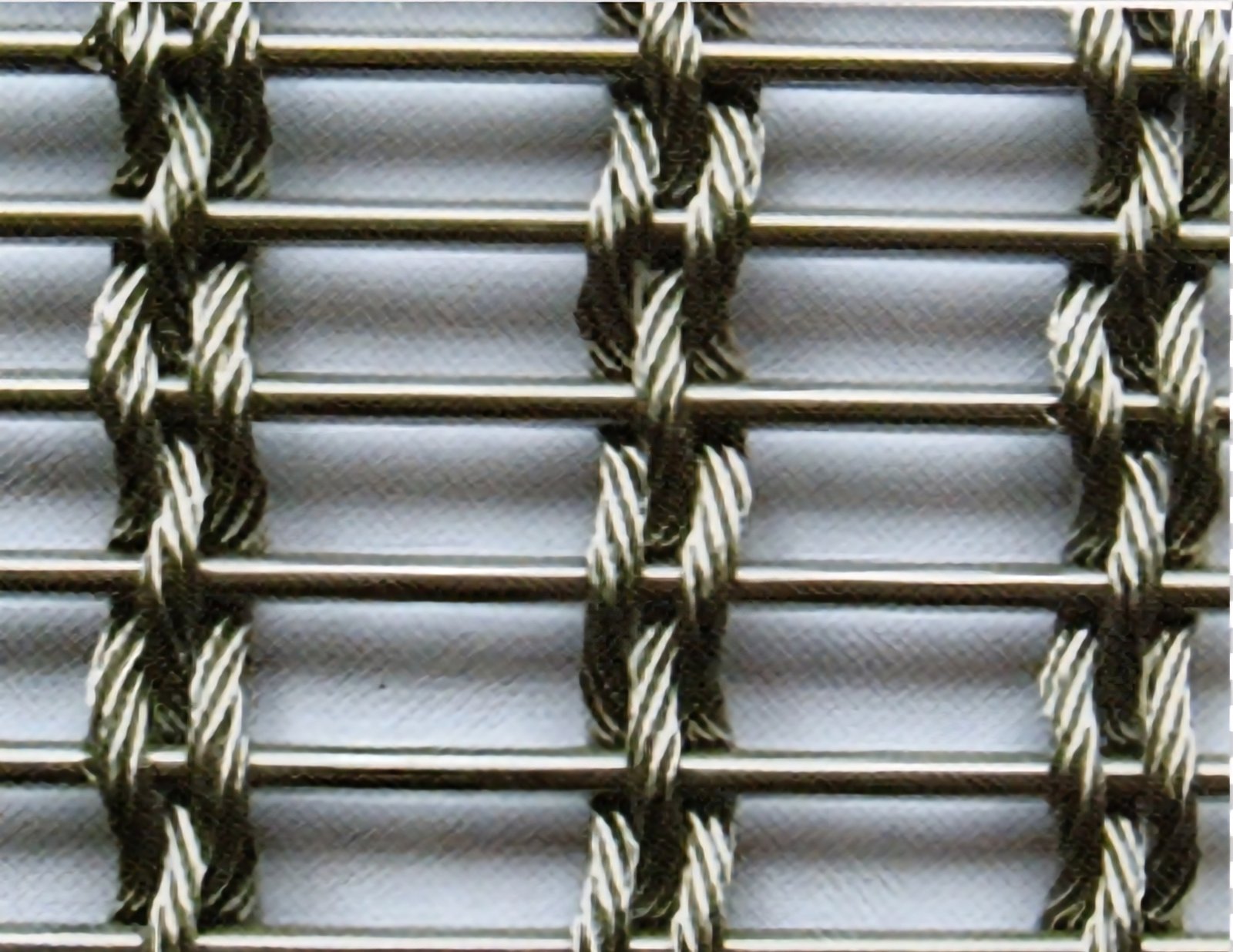

UW-4311
Material : Stainless Steel 304/316/316L
Cable diameter : 3mm x 3
Cable pitch : 40 mm
Rod diameter : 3 mm
Rod pitch : 11 mm
Weight : 9.5 kg/m²

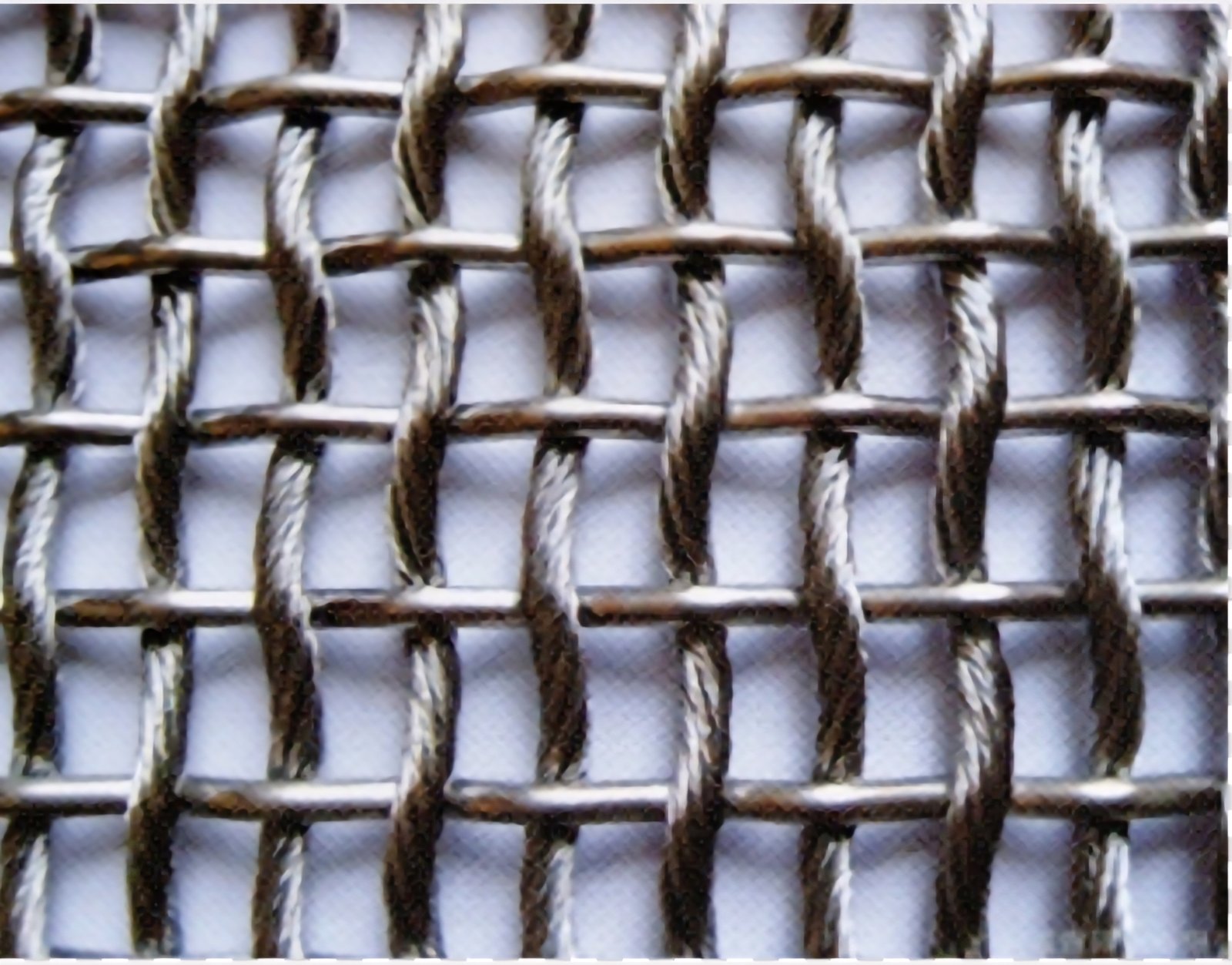

UW-4525
Material : Stainless Steel 304/316/316L
Cable diameter : 2.5mm x 1
Cable pitch : 6 mm
Rod diameter : 2 mm
Rod pitch : 8 mm
Weight : 9.8 kg/m²

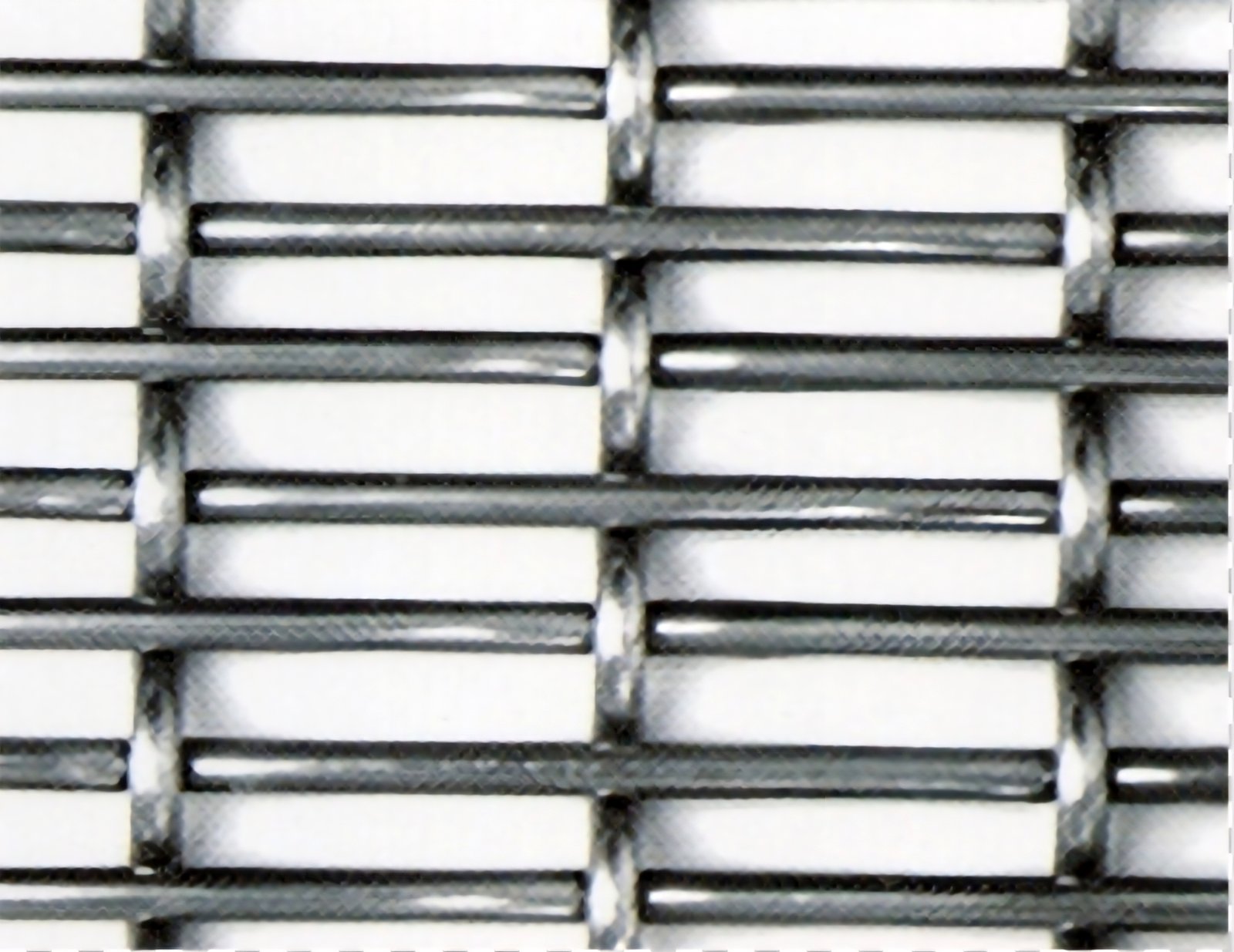

UW-5025
Warp Diameter : 3mm
Warp Pitch : 50mm
Weft Diameter : 3mm
Weft Pitch : 10mm
Weight : 6.8 kg/m²
UW-6212
Material : Stainless Steel 304/316/316L
Warp diameter : 1.2mm x 2
Warp pitch : 17.5 mm
Weft diameter : 2 mm
Weft pitch : 4 mm
Weight : 7.4 kg/m²

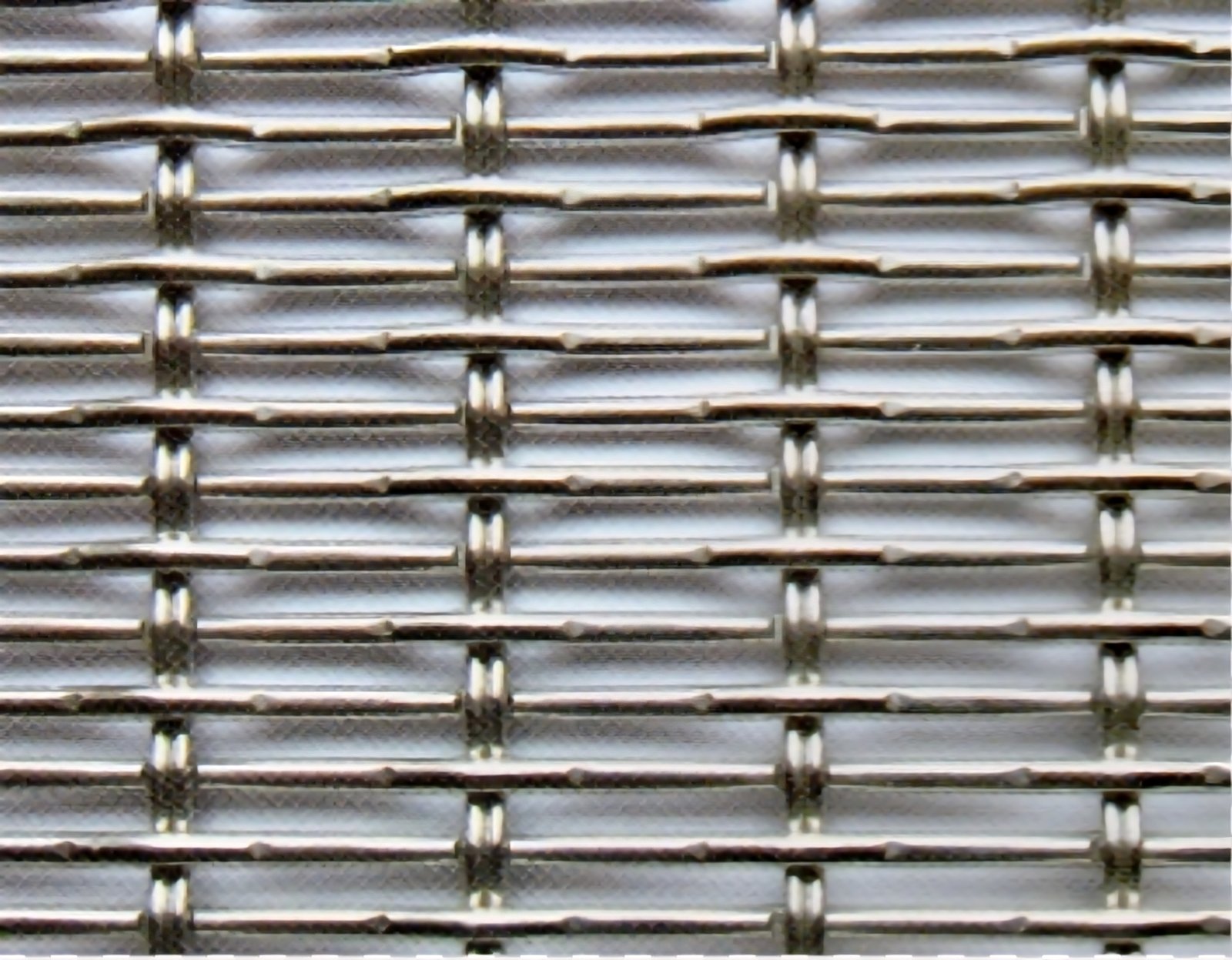

UW-6216
Material : Stainless Steel 304/316/316L
Warp diameter : 1.2mm x 2
Warp pitch : 17.5 mm
Weft diameter : 2 mm
Weft pitch : 6 mm
Weight : 5.3 kg/m²

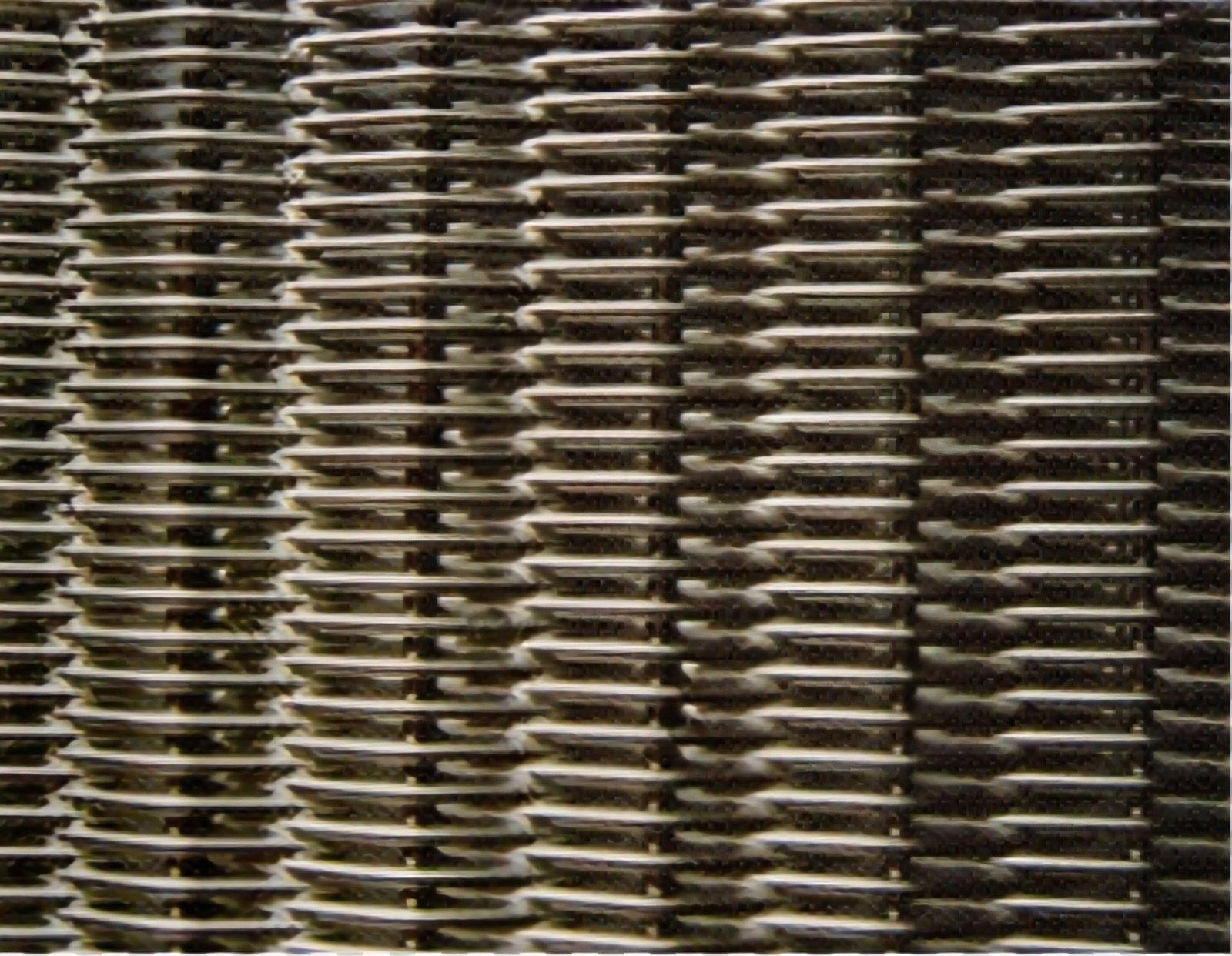

UW-5215
Material : Stainless Steel 304/316/316L
Cable diameter : 2mm x 1
Cable pitch : 17.5 mm
Rod diameter : 1.5 mm
Rod pitch : 1.5 mm
Weight : 11 kg/m²

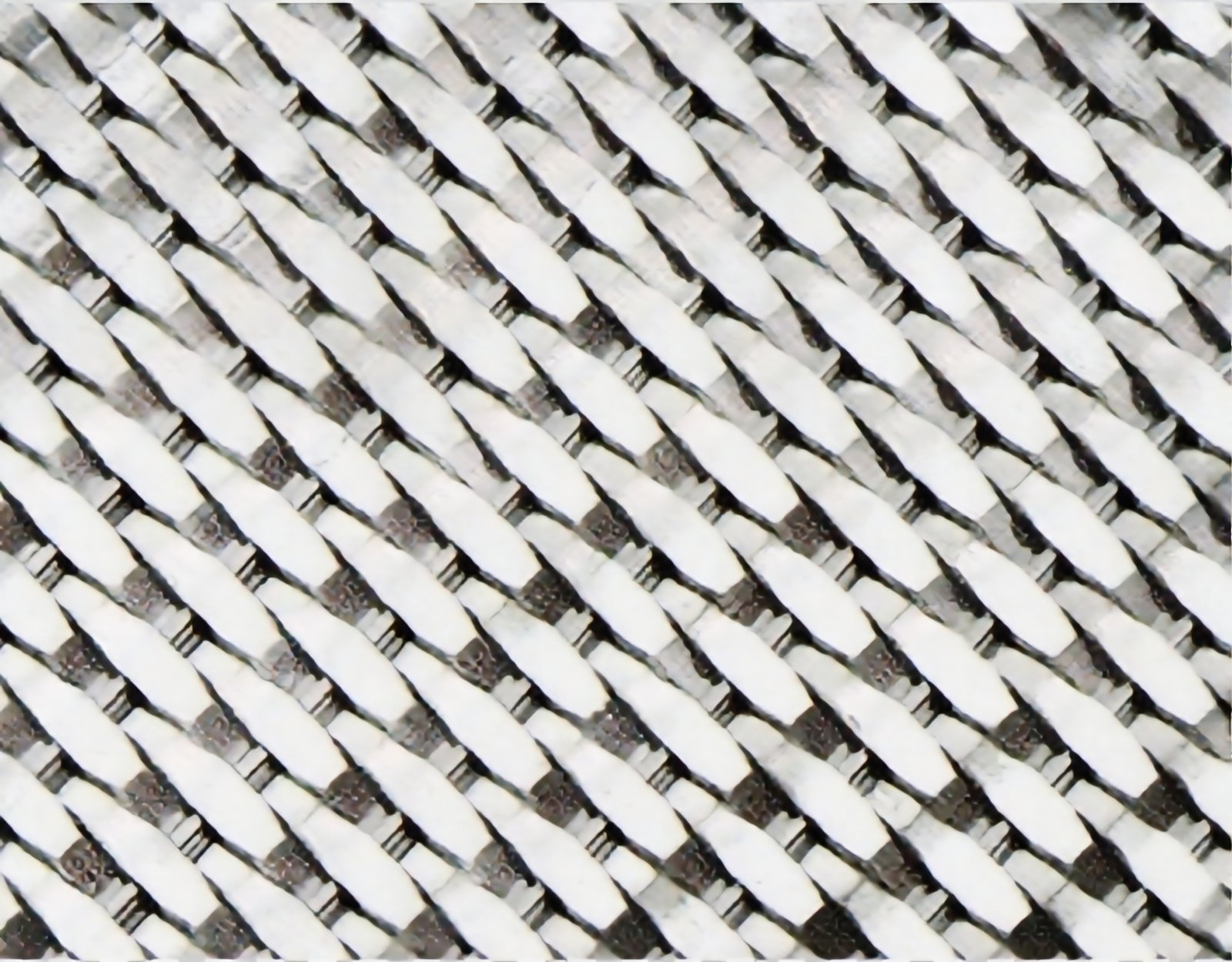

UW-6148
Material : Stainless Steel 304/316/316L
Warp diameter : 1.5mm
Warp pitch : 9.3mm
Weft diameter : 1.5mm x 2mm
Weft pitch : 2.5mm
Weight : 11.6 kg/m²

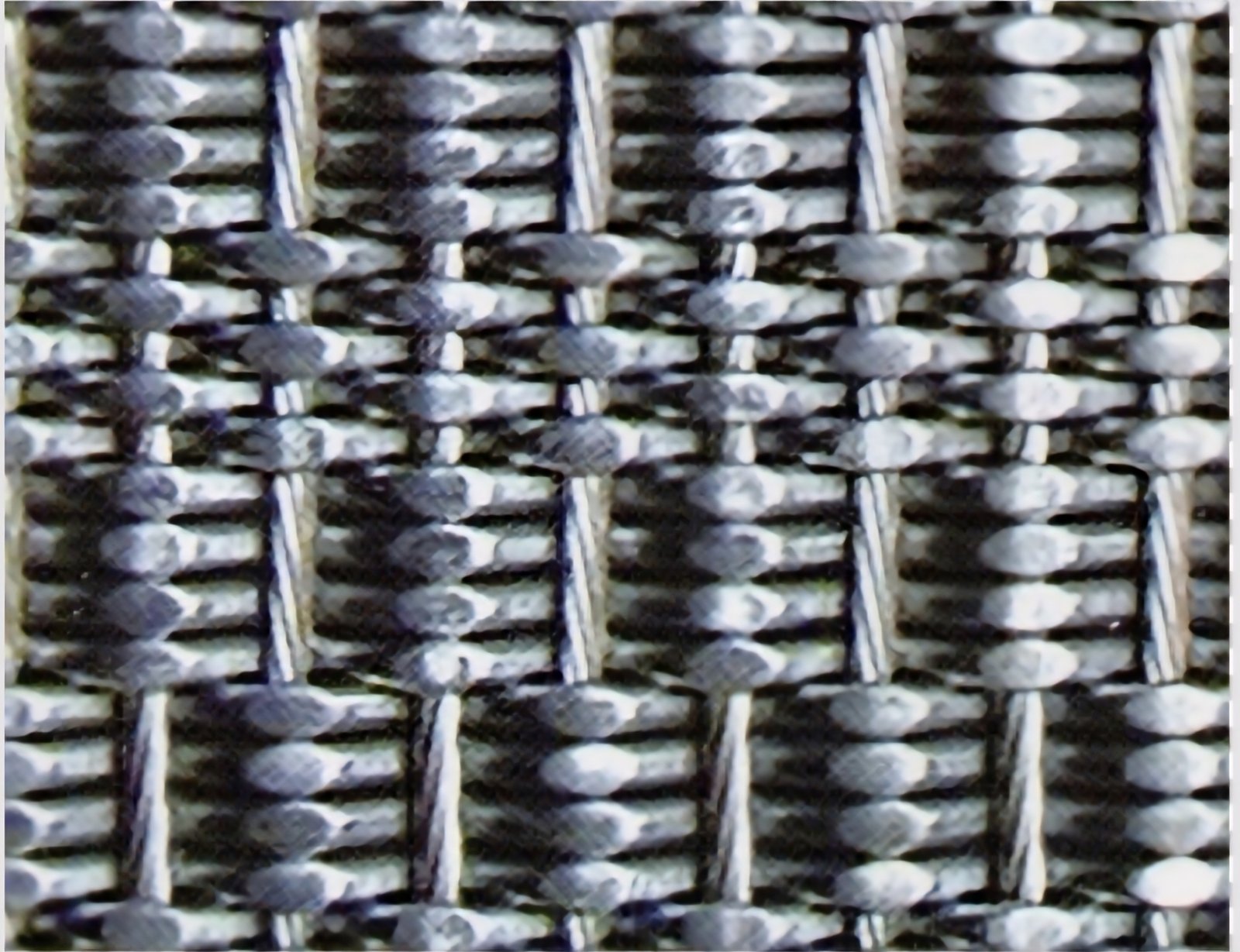

UW-6514
Material : Stainless Steel 304/316/316L
Cable diameter : 1.5mm x 1
Cable pitch : 5 mm
Rod diameter : 1.5 mm
Rod pitch : 1.7 mm
Weight : 11.38 kg/m²

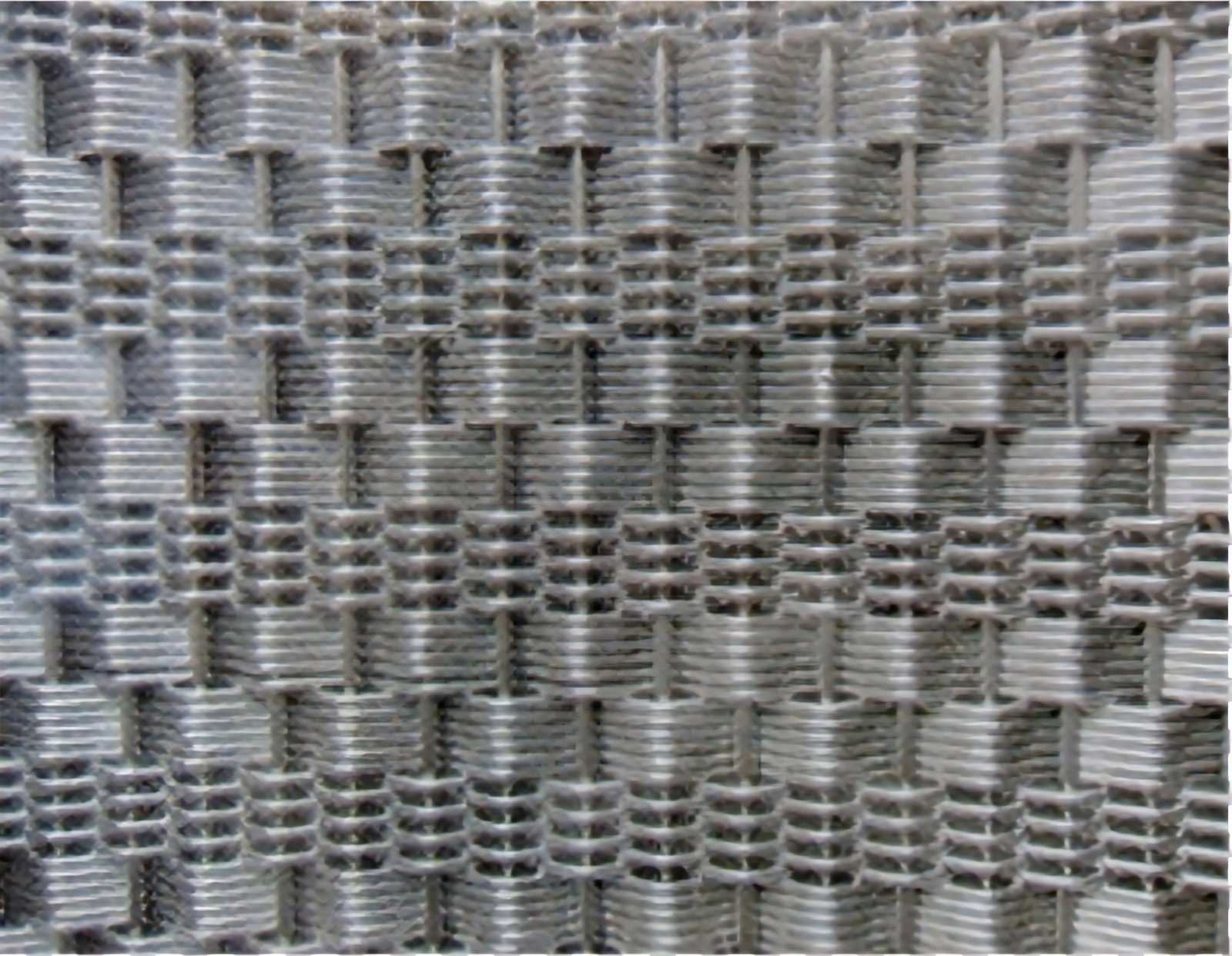

UW-6517
Material : Stainless Steel 304/316/316L
Warp diameter : 2mm x 1
Warp pitch : 8mm
Weft diameter : 1.5 mm
Weft pitch : 1.5 mm
Weight : 12.7 kg/m²

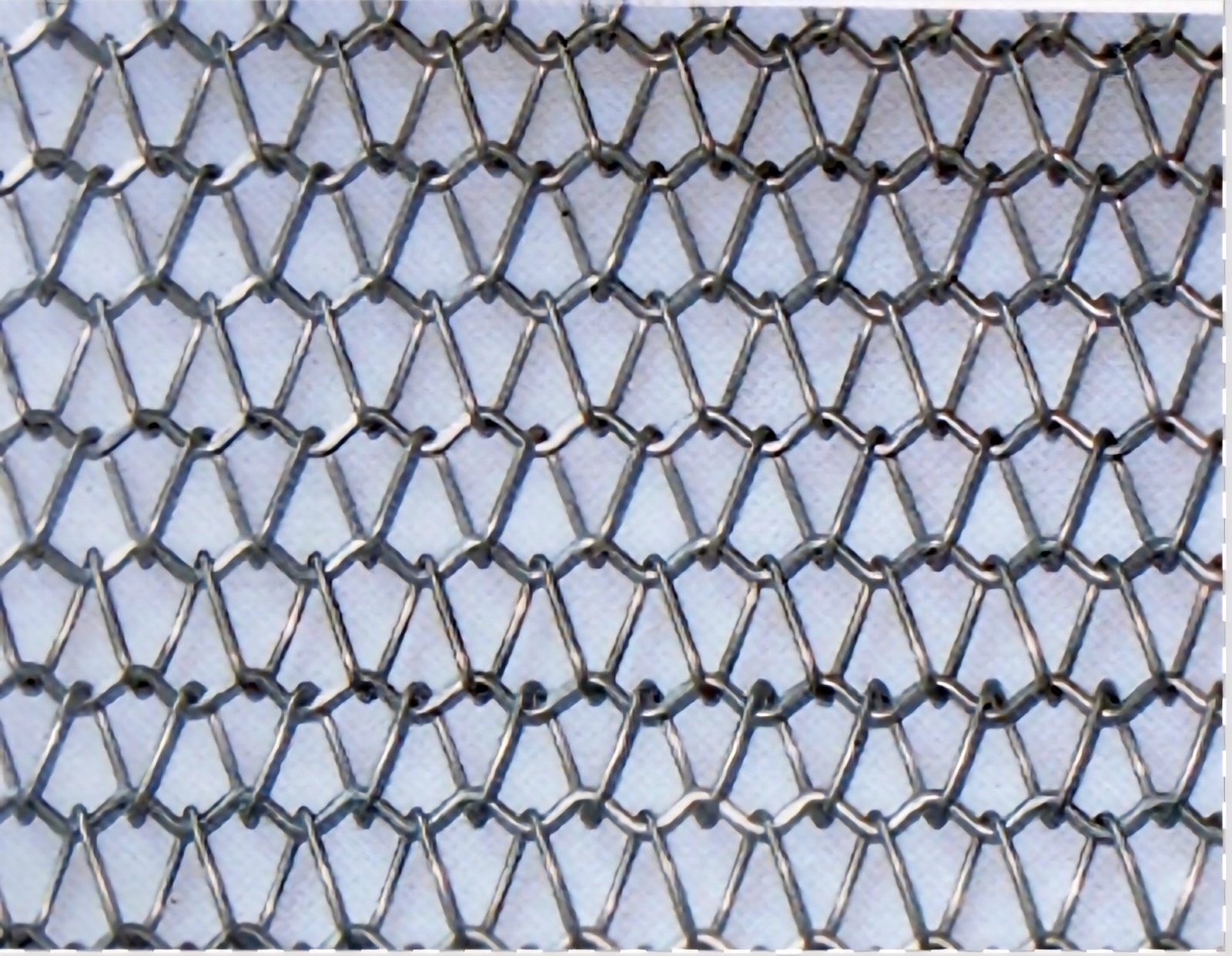

UW-7026
Spiral dia : 2.6mm
Spiral pitch : 24.3mm
Cross rod dia : 2.6mm
Cross rod pitch : 22.5mm
Weight : 6.8 kg/m²

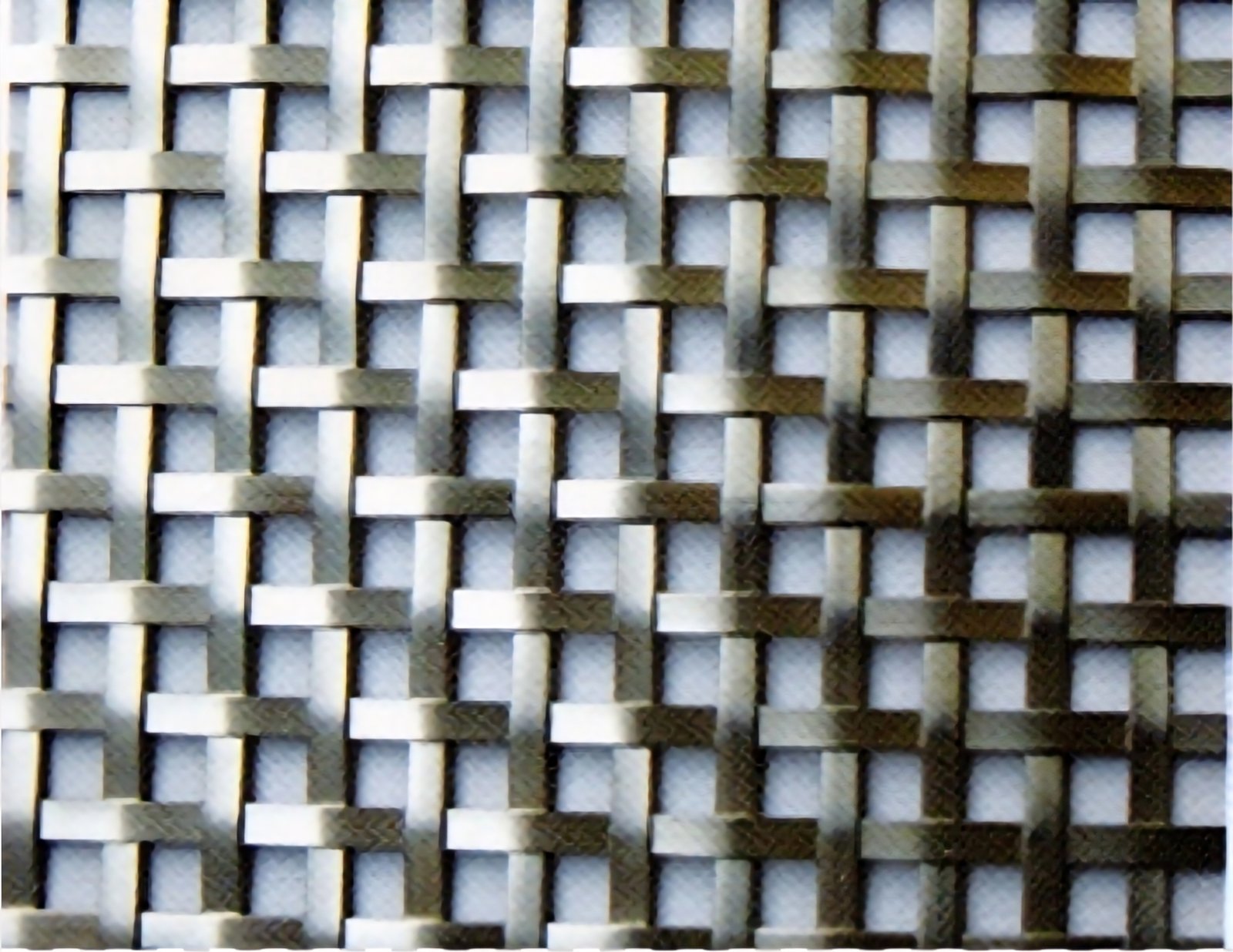

UW-8156
Material : Stainless Steel 304/316/316L
Warp diameter : 1.5mm x 6 mm
Warp pitch : 12mm
Weft diameter : 1.5mm x 6mm
Weft pitch : 12mm
Weight : 12.23 kg/m²

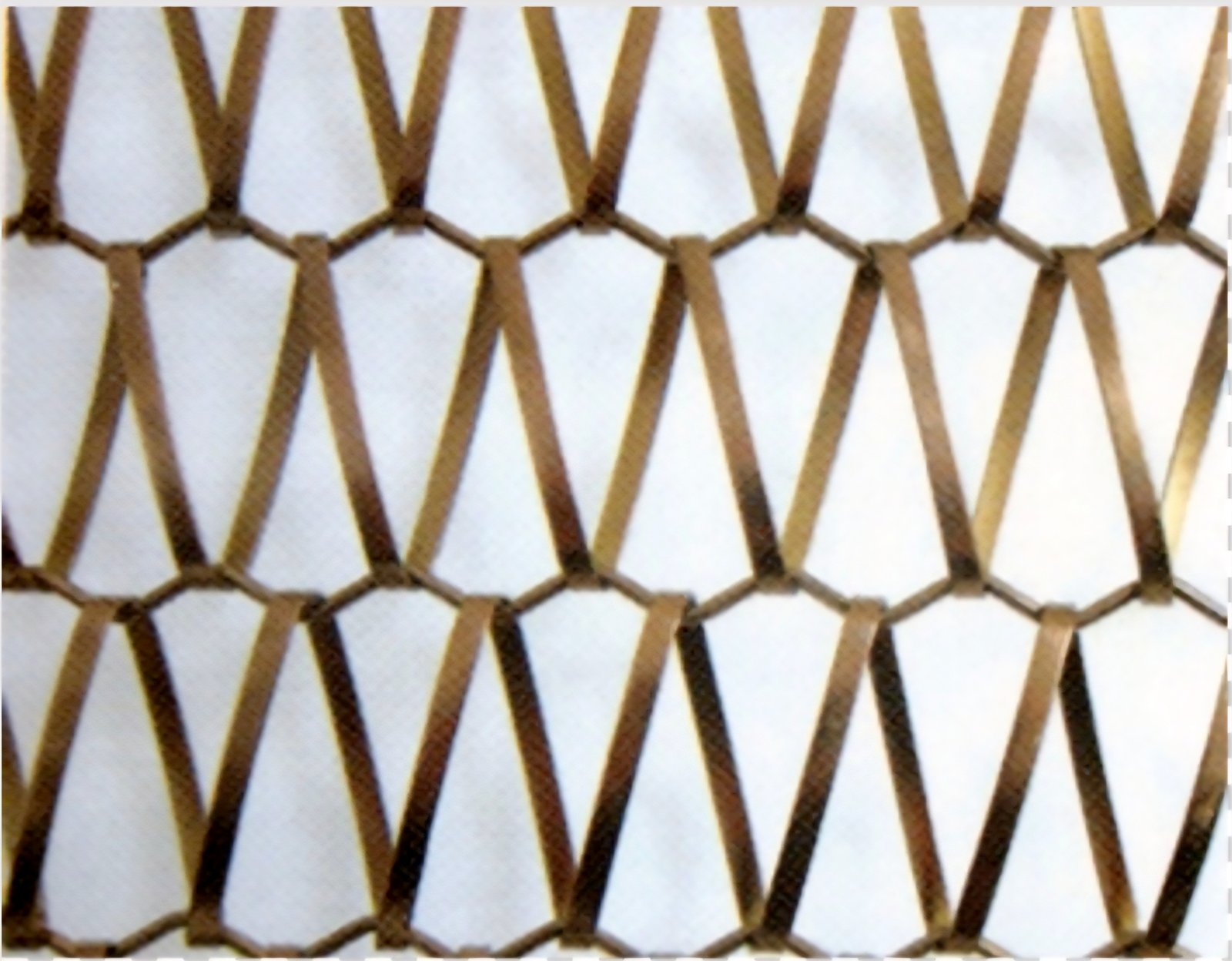

UW-7324
Spiral dia : 1.75 x 5mm
Spiral pitch : 36.5mm
Cross rod dia : 3.0mm
Cross rod pitch : 60mm
Weight : 4.6 kg/m²

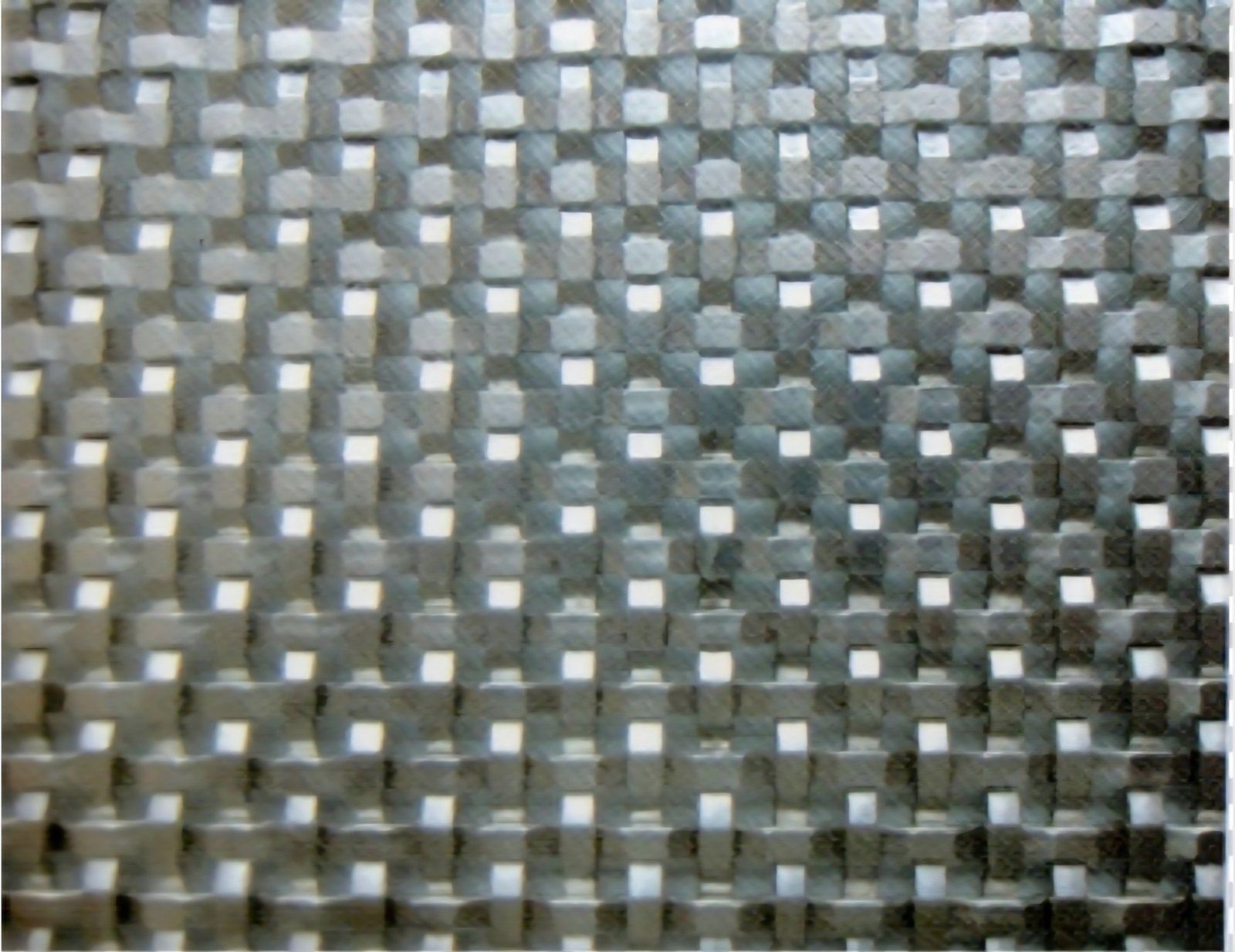

UW-8535
Material : Stainless Steel 304/316/316L
Warp diameter : 3.4mm x 1.1 mm
Warp pitch : 6.6mm
Weft diameter : 3.4mm x 1.1mm
Weft pitch : 6.6mm
Weight : 11.55 kg/m²

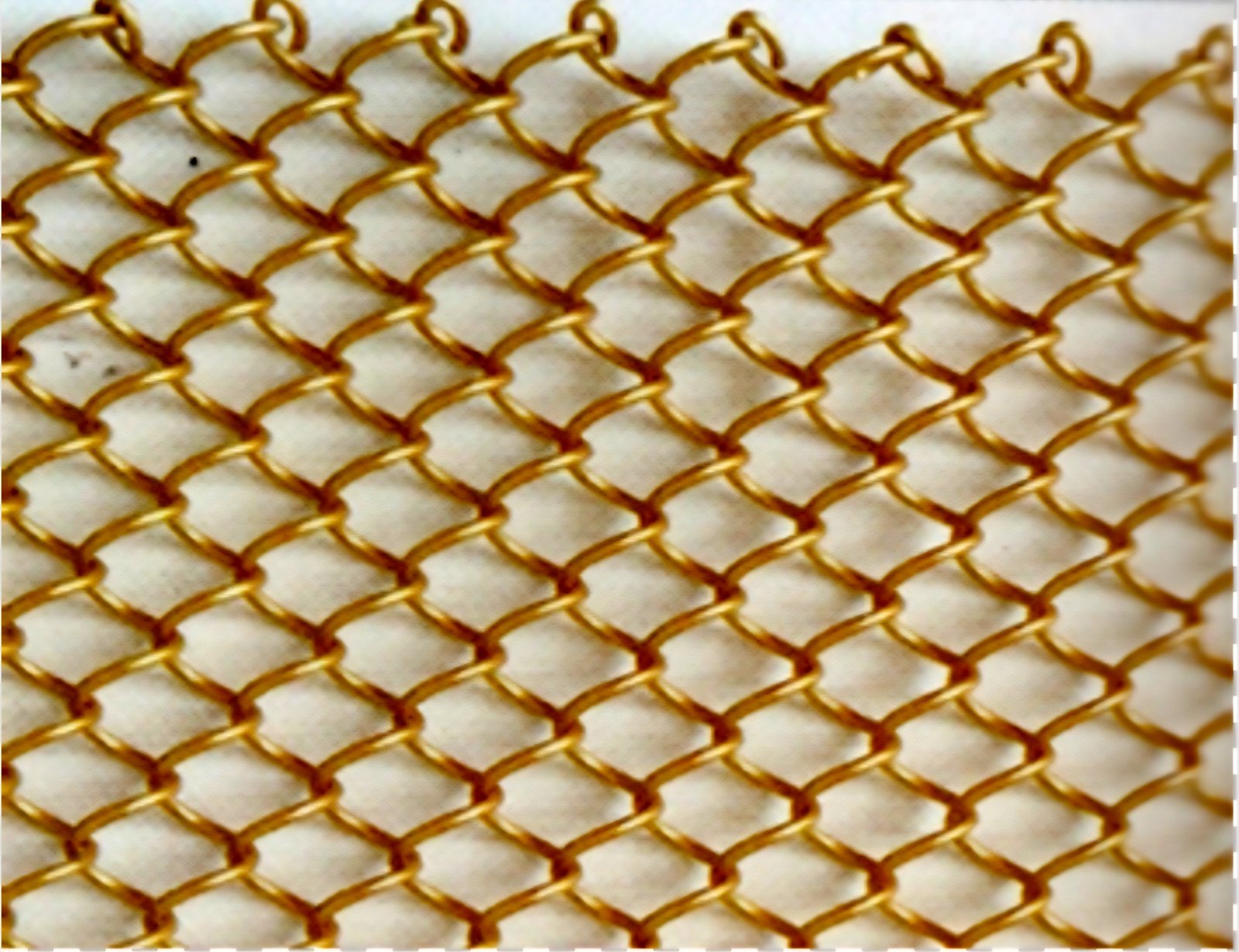

Metal Coil Drapery
Material : Aluminium alloy, Stainless steel, Carbon steel
Wire diameter : 0.8-1.2mm
Open size : 4mm-8mm
Color Available : Golden, Silver, Copper, etc

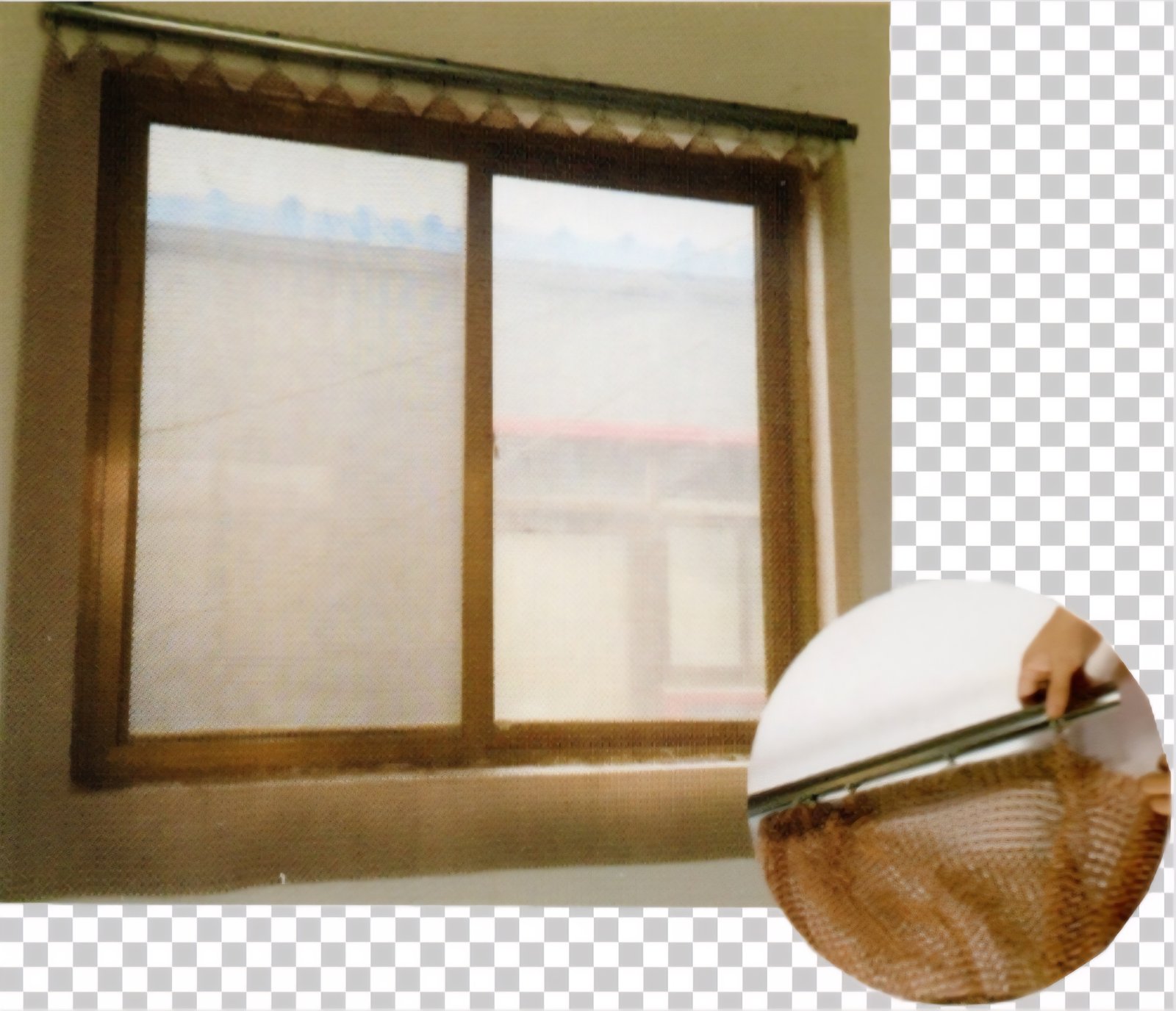

Metal ring mesh
Material : Stainless steel 304/316/316L
Wire diameter : 0.8mm/ 1.0mm/2.0mm
Ring diameter : 12mm-20 mm
Color Available : Golden, Silver, Copper, etc

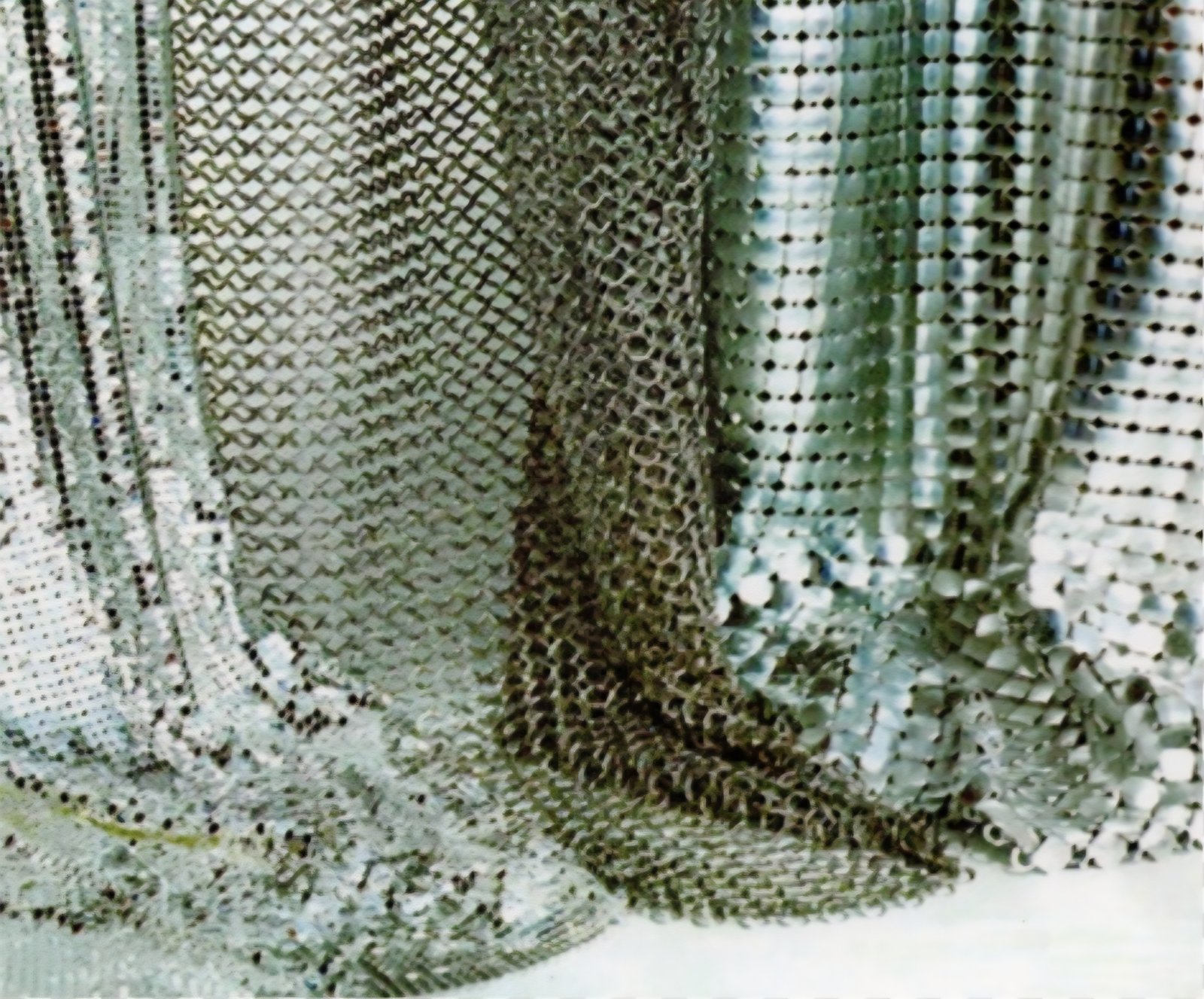

Metal mesh fabric
Material : Stainless steel aluminium alloy
Specification : 3mm/4mm/6mm/ 8mm/10mm flakes
Color Available : Golden, Silver, Red, Pink, Blue, Green, etc
