Stainless Steel Cable Mesh Specifications

Stainless steel cable mesh Specifications are composed of the wire rope diameter and the mesh aperture. Rope diameter, Mesh aperture, and Mesh panel size can all be customized. We will produce according to your requirements. Stainless steel cable mesh by pure manual processing production, after a variety of processing technology. It is luxurious in appearance, highly durable, and timeless.

Stainless steel cable mesh (alternate names: hand-woven stainless steel mesh, stainless steel rope woven mesh, stainless steel cable netting, stainless steel cable woven mesh, flexible metal mesh, flexible cable mesh), suitable for zoo animal fence mesh, zoo aviary mesh, stadium fence, safety protection nets and so on.

Details of Products Specifications

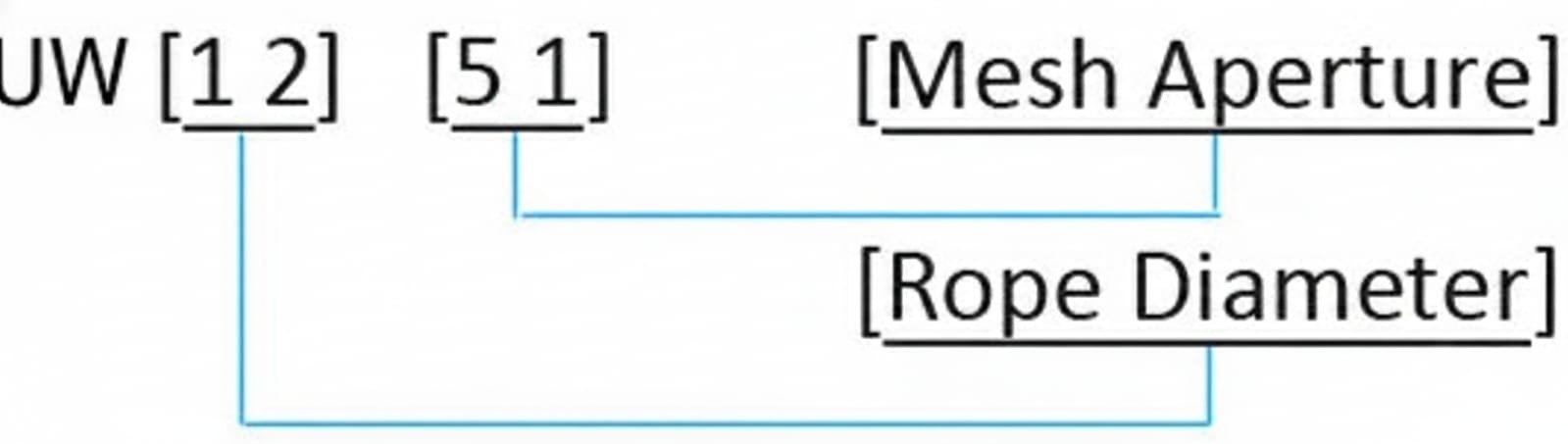

The specification name of stainless steel wire mesh is composed of the wire rope diameter and the mesh aperture.

For example: UW1251

Rope diameter: 1.2mm (3/64")

Mesh aperture: 51mm x 51mm (2" x 2")

The wire rope diameter is 1.2 mm; When the opening angle of each mesh is 90�, the distance between the two parallel ropes is the standard rope diameter. Shown as the "X" in the picture. In this example, X = 51mm.

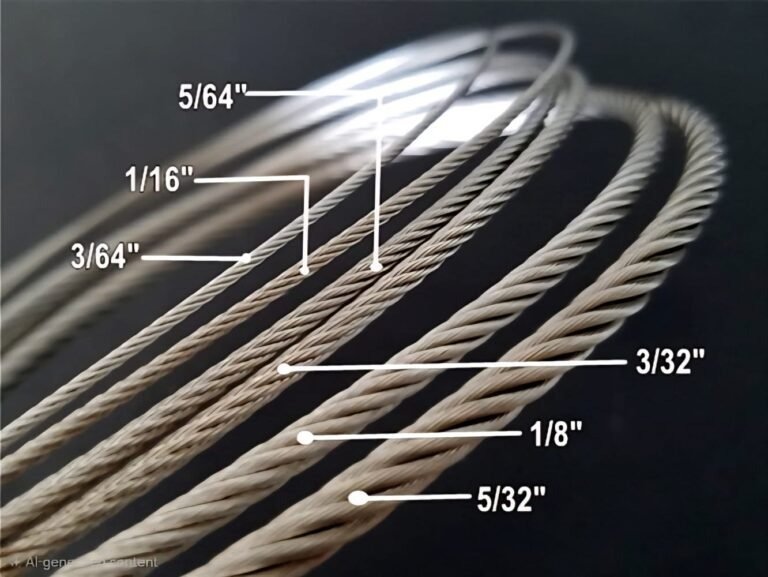

Wire rope diameter:

By inch: 3/64", 1/16", 5/64", 3/32", 1/8"
By mm: 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.2mm

Mesh aperture:

By inch: 0.8"x0.8", 1"x1", 1.2"x1.2", 1.5"x1.5", 2"x2", 2.4"x2.4", 3"x3", 3.6"x3.6", 4"x4", 5"x5", 6"x6".
By mm: 20mmx20mm, 25mmx25mm, 30mmx30mm, 38mmx38mm, 51mmx51mm, 60mmx60mm, 76mmx76mm, 90mmx90mm, 102mmx102mm, 127mmx127mm, 152mmx152mm

Stainless steel cable mesh (alternate names: hand-woven stainless steel netting, stainless steel rope mesh, flexible metal mesh, stainless steel wire rope mesh) is a rhomboid mesh, with excellent elasticity and toughness, almost indestructible, most impact and destructive resistance, anti-weathering.

Stainless steel cable mesh is anti-rust, corrosion-resistant, and has a service life of more than 30 years.

Thanks to the stainless steel material of the braided rope mesh itself, it is securely guaranteed to safely keep any variety of animals, including beasts, raptors, ornamental birds, primates. Its flexible mesh size can be applied to any common bird, from the smallest warbler to the largest macaws.

Woven mesh holes can be customized to meet the precise specifications of your exhibits.

Whether your requirements are safe and secure, or flexible and beautiful, our cable woven mesh can meet your requirements.

We invite you to consider incorporating our stainless steel cable mesh into your design. As a utility model material, it will make your design unlimited, can be reliable and elegant, and has unparalleled economic benefits, one investment, almost no maintenance costs to spend, a reliable service life of 30 years.

Stainless Steel Rope Mesh Product Description

Mesh aperture:

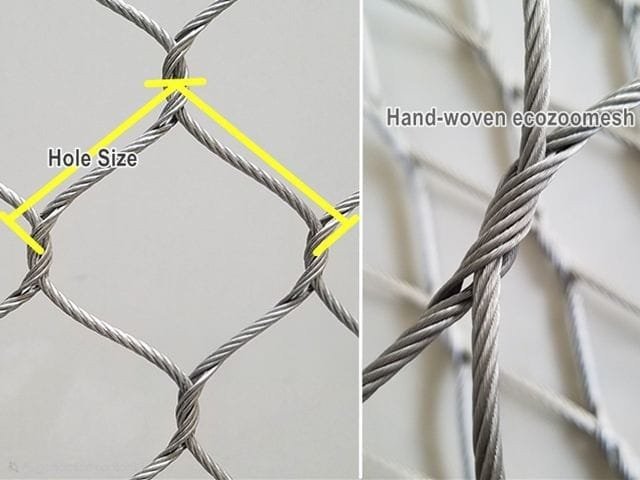

Mesh aperture is the mesh hole size, that is the distance from knot center to knot center.
Pure hand-woven. Every knot crosses twice by hand, ensuring the hole never varies.
Stainless steel cable mesh aperture has diverse specifications.
No matter large or small, our custom stainless steel cable mesh size can be very suited for your design.

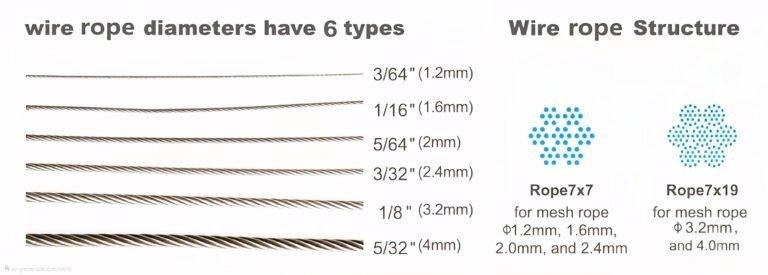

Wire rope diameter of Mesh:

The stainless steel wire rope diameter

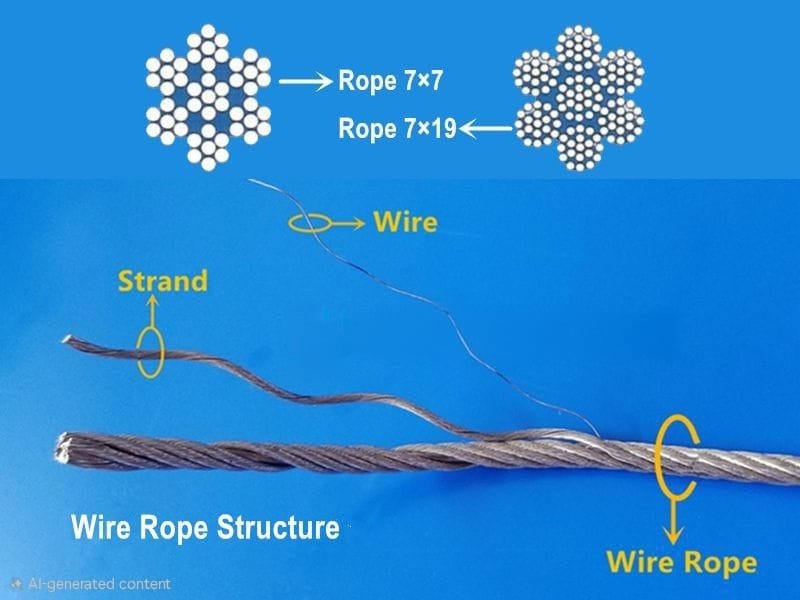

The wire rope structure
The Min breaking load (KN)

Material:

High quality stainless steel wire rope, material include AISI304 and AISI316 and 316L.
In general, the material AISI 304 is the main material, can meet the needs of most areas, and the AISI316 material mainly used for wet environment, like seaside.

Product Specification Table

Product ID	Rope Dia (mm)	Aperture (mm)	Rope Dia (Inch)	Aperture (Inch)	Weight (kg/m�)	Weight (kg/sq.ft)	Structure	Tensile	Wire Dia
UW1215	1.2	15 x 15	3/64"	0.6" x 0.6"	0.92	0.085	7 x 7	2030	0.135
UW1220	1.2	20 x 20	3/64"	0.8" x 0.8"	0.7	0.065	7 x 7	2030	0.135
UW1225	1.2	25.4 x 25.4	3/64"	1" x 1"	0.53	0.049	7 x 7	2030	0.135
UW1230	1.2	30 x 30	3/64"	1.2" x 1.2"	0.45	0.042	7 x 7	2030	0.135
UW1238	1.2	38 x 38	3/64"	1.5" x 1.5"	0.37	0.034	7 x 7	2030	0.135
UW1251	1.2	51 x 51	3/64"	2" x 2"	0.26	0.024	7 x 7	2030	0.135
UW1260	1.2	60 x 60	3/64"	2.4" x 2.4"	0.23	0.021	7 x 7	2030	0.135
UW1276	1.2	76 x 76	3/64"	3" x 3"	0.19	0.018	7 x 7	2030	0.135
UW1290	1.2	90 x 90	3/64"	3.6" x 3.6"	0.17	0.016	7 x 7	2030	0.135
UW12102	1.2	102 x 102	3/64"	4" x 4"	0.15	0.014	7 x 7	2030	0.135
UW1625	1.6	25.4 x 25.4	1/16"	1" x 1"	1	0.093	7 x 7	2300	0.17
UW1630	1.6	30 x 30	1/16"	1.2" x 1.2"	0.9	0.084	7 x 7	2300	0.17
UW1638	1.6	38 x 38	1/16"	1.5" x 1.5"	0.64	0.059	7 x 7	2300	0.17
UW1651	1.6	51 x 51	1/16"	2" x 2"	0.5	0.046	7 x 7	2300	0.17
UW1660	1.6	60 x 60	1/16"	2.4" x 2.4"	0.45	0.042	7 x 7	2300	0.17
UW1676	1.6	76 x 76	1/16"	3" x 3"	0.37	0.034	7 x 7	2300	0.17
UW1690	1.6	90 x 90	1/16"	3.6" x 3.6"	0.32	0.03	7 x 7	2300	0.17
UW16102	1.6	102 x 102	1/16"	4" x 4"	0.24	0.022	7 x 7	2300	0.17
UW2038	2	38 x 38	5/64"	1.5" x 1.5"	1.03	0.096	7 x 7	2080	0.22
UW2051	2	51 x 51	5/64"	2" x 2"	0.76	0.071	7 x 7	2080	0.22
UW2060	2	60 x 60	5/64"	2.4" x 2.4"	0.65	0.06	7 x 7	2080	0.22
UW2076	2	76 x 76	5/64"	3" x 3"	0.51	0.047	7 x 7	2080	0.22
UW2090	2	90 x 90	5/64"	3.6" x 3.6"	0.45	0.042	7 x 7	2080	0.22
UW20102	2	102 x 102	5/64"	4" x 4"	0.4	0.037	7 x 7	2080	0.22
UW20127	2	127 x 127	5/64"	5" x 5"	0.3	0.028	7 x 7	2080	0.22
UW2451	2.4	51 x 51	3/32"	2" x 2"	1.02	0.095	7 x 7	1860	0.26
UW2460	2.4	60 x 60	3/32"	2.4" x 2.4"	0.87	0.081	7 x 7	1860	0.26
UW2476	2.4	76 x 76	3/32"	3" x 3"	0.72	0.067	7 x 7	1860	0.26
UW2490	2.4	90 x 90	3/32"	3.6" x 3.6"	0.6	0.056	7 x 7	1860	0.26
UW24102	2.4	102 x 102	3/32"	4" x 4"	0.54	0.05	7 x 7	1860	0.26
UW24127	2.4	127 x 127	3/32"	5" x 5"	0.42	0.039	7 x 7	1860	0.26
UW24152	2.4	152 x 152	3/32"	6" x 6"	0.35	0.033	7 x 7	1860	0.26
UW3251	3.2	51 x 51	1/8"	2" x 2"	1.95	0.181	7 x 19	1920	0.21
UW3260	3.2	60 x 60	1/8"	2.4" x 2.4"	1.65	0.153	7 x 19	1920	0.21
UW3276	3.2	76 x 76	1/8"	3" x 3"	1.28	0.119	7 x 19	1920	0.21
UW3290	3.2	90 x 90	1/8"	3.6" x 3.6"	1.1	0.102	7 x 19	1920	0.21
UW32102	3.2	102 x 102	1/8"	4" x 4"	0.9	0.084	7 x 19	1920	0.21
UW32127	3.2	127 x 127	1/8"	5" x 5"	0.7	0.065	7 x 19	1920	0.21
UW32152	3.2	152 x 152	1/8"	6" x 6"	0.61	0.057	7 x 19	1920	0.21
UW32203	3.2	203 x 203	1/8"	8" x 8"	0.43	0.04	7 x 19	1920	0.21
UW4076	4	76 x 76	5/32"	3" x 3"	1.9	0.177	7 x 19	1880	0.24
UW4090	4	90 x 90	5/32"	3.6" x 3.6"	1.7	0.158	7 x 19	1880	0.24
UW40102	4	102 x 102	5/32"	4" x 4"	1.5	0.139	7 x 19	1880	0.24
UW40127	4	127 x 127	5/32"	5" x 5"	1.15	0.107	7 x 19	1880	0.24
UW40152	4	152 x 152	5/32"	6" x 6"	1	0.093	7 x 19	1880	0.24
UW40203	4	203 x 203	5/32"	8" x 8"	0.75	0.07	7 x 19	1880	0.24

Stainless Steel Rope Mesh - About Service & Ordering

Free Sample:

A sample of size 30cm x 30cm of Stainless steel cable wire mesh will be provided free of cost.

Custom Specification

Raw Material: Either AISI 316 & 316L or AISI 304.

Panel Size: Our standard size is 8 meter x 8 meter. Upon request, we will manufacture the wire rope netting according to specification.

Wire Rope Diameter: Ranging from 1.2mm, 1.6mm, 2.0mm, 2.4 mm, and 3.2mm.

Apertures: Standard apertures are from 102mm x 102mm, 90mm x 90mm, 76mm x 76mm, 60mm x 60mm, 51mm x 51mm, 38mm x 38mm, 25mm x 25mm, 20mm x 20mm.

For more information, please refer to the Product Specifications Table.

Color: natural, black, bronze.

If there are any special requirements for the apertures not shown, please feel free to contact us.

The size of wire cable mesh panels roll

The size of the bulk roll varies depending on the size of the stainless steel cable mesh ordered.

Packaging

The stainless steel cable mesh will be rolled and packed into wooden boxes.

Convenient and fast installation

With customized sizes, the wire mesh panels and frames are compatible, easy for installation. Our detailed installation guidance will facilitate a worry-free installation for you.
